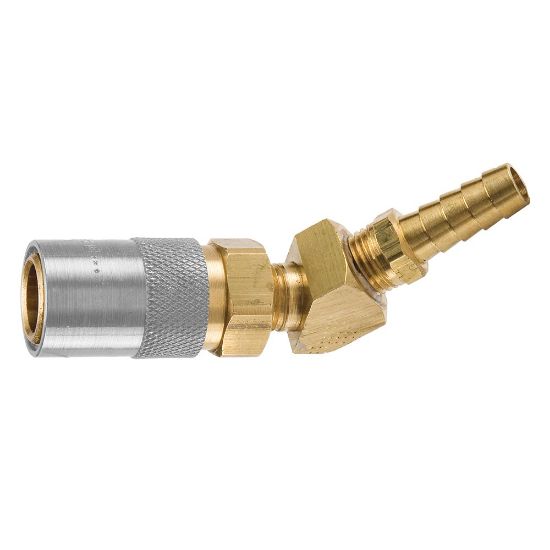

PC328V - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PC328V

$37.61/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Coupling Half	Female Coupler	Valve Style	Poppet
Connection Type	Hose barb, 45 degree	Connection Hose I.D. (inch)	1/2
Flow Rate	6	Connection Thread Size (inch)	na
Body Size (inch)	3/8	Dimensional Weight	0.05341726618705036 lb
Application	Hydraulics	Maximum Operating Pressure	200 psi
Hex Size	0.88 inch	Plating Type	Zinc with clear trivalent chromate on sleeve
Minimum Operating Temperature	-15 °F	Seal Material	Silicone - Fluorocarbon
Maximum Operating Temperature	400 °F	Product Type	Manual Connect
Division	Quick Coupling Division
