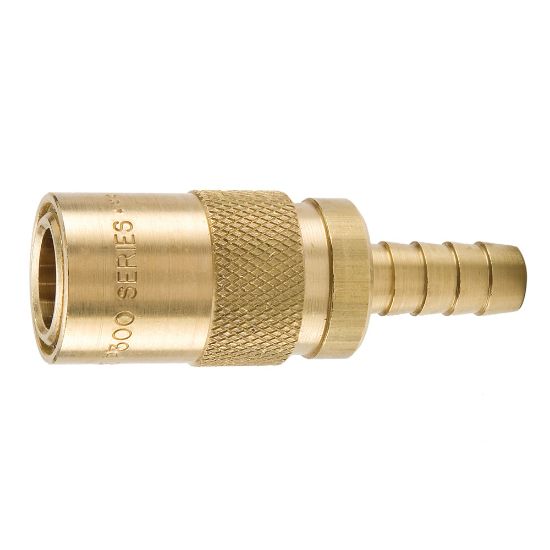

PC504 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	1 Limited Stock

SKU PC504

$51.85/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Style	Unvalved
Body Size (inch)	1/2	Body Material	BRASS
Flow Rate	12	Connection Type	Hose barb
Connection Hose I.D. (inch)	1/2	Connection Thread Size (inch)	na
Coupling Half	Female Coupler	Minimum Operating Temperature	-20 °F
Hex Size	na inch	Application	Mold Coolant
Product Type	Manual Connect	Seal Material	Silicone
Plating Type	na	Division	Quick Coupling Division
Maximum Operating Temperature	400 °F	Maximum Operating Pressure	200 psi
Dimensional Weight	0.12464028776978417 lb
