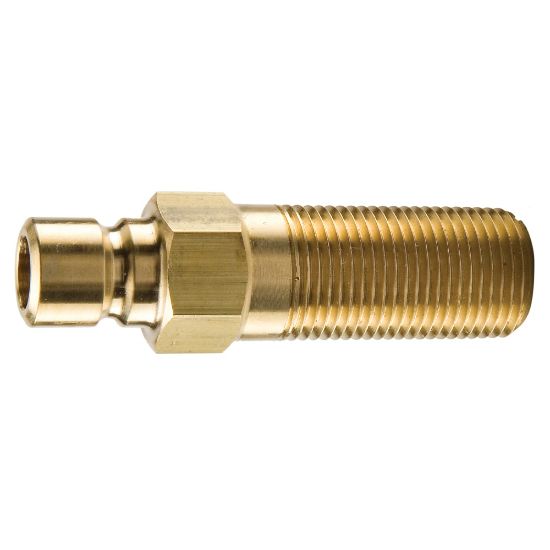

PN252-40 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PN252-40

$10.03/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	3
Body Size (inch)	1/4	Connection Type	Male NPTF (extended length)
Connection Thread Size (inch)	1/4 - 18	Body Material	BRASS
Connection Hose I.D. (inch)	na	Valve Style	Unvalved
Coupling Half	Male Nipple	Maximum Operating Pressure	200 psi
Minimum Operating Temperature	-20 °F	Application	Hydraulic, mold coolant
Product Type	Manual Connect	Plating Type	na
Hex Size	9/16 inch	Division	Quick Coupling Division
Maximum Operating Temperature	400 °F	Seal Material	na
