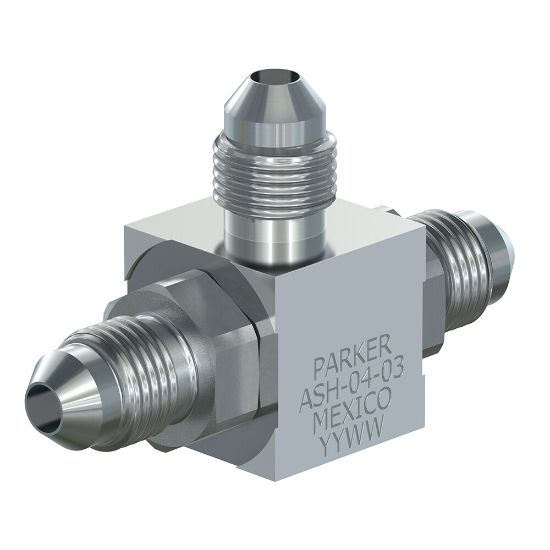

ASH-04-03 - Inline Shuttle Valves

REGIONAL - Parker's ball type inline shuttle valves are plumbed external from manifolds and line bodies and are available in two flow size options of 11 lpm (3 gpm) or 22 lpm (6 gpm), and pressures up to 207 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	4 in stock

SKU ASH-04-03

$103.20/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	3 GAL/MIN, 11 L/MIN
Maximum Inlet Pressure Rating	3000 psi	Function	Shuttle
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Operating Temperature	121 °C
Division	Hydraulic Cartridge Systems Division	Leak Rate	5
Seal Material	Nitrile	Maximum Flow Rate	3 Gal/min
Actuation Type	Pressure Sensing	Operating Temperature	-34 to 121 °C
Filter Efficiency Rating	SAE Class 4	Configuration	Inline
Maximum Operating Pressure	3000 psi	Body Material	Steel
Division	Hydraulic Systems Division	Weight	0.8 lb
Operation Type	Automatic	Minimum Operating Temperature	-30 °F
Flow Rate	11 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
