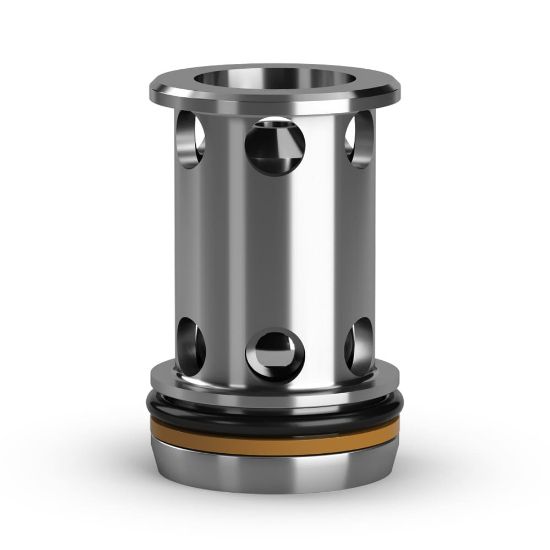

D1A060-2.0N - Insert Check Valves

Parker’s ball and poppet style check valves are cartridges designed to be inserted inside manifolds and can handle flow up to 500 lpm (132 gpm) and pressures at 420 bar (6,000 psi) for circuit optimization and space savings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 290 days
Partner Available:	Backordered

SKU D1A060-2.0N

$97.53/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	38 GAL/MIN, 145 L/MIN
Cracking Pressure	30 PSI, 2 BAR	Cracking Pressure	30 psi
Function	Check	Flow Direction	1-2 Free Flow
Cavity Size	2U	Minimum Operating Temperature	-30 °F
Mounting Type	Inside Manifolds	Flow Rate	145 L/min
Configuration	Insert	Actuation Type	Pressure Sensing
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to 250 °F
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Operating Pressure	420 bar
Weight	0.19 lb	Body Material	n/a
Connection Type	n/a	Operation Type	Automatic
Division	Mobile Hydraulic Systems Division Europe	Maximum Flow Rate	38 Gal/min
Division	Hydraulic Cartridge Systems Division	Leak Rate	n/a
Maximum Operating Temperature	121 °C	For Fluid Type	Mineral-based Hydraulic Fluids
Seal Material	Nitrile	Valve Material	Steel (all parts)
Connection Size	n/a	Maximum Inlet Pressure Rating	6000 psi
