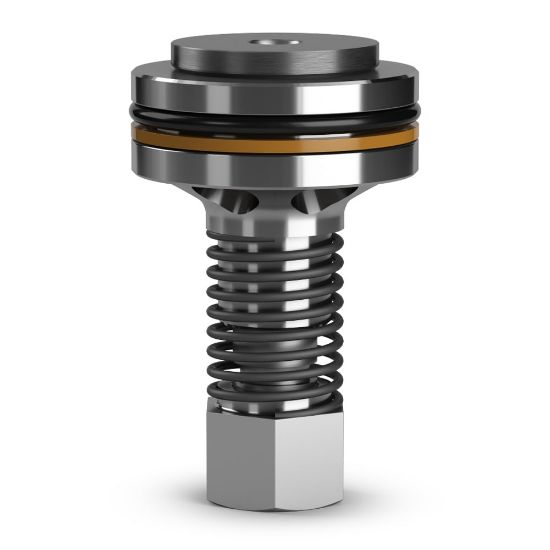

D1B125-0.0N - Insert Check Valves

Parker’s ball and poppet style check valves are cartridges designed to be inserted inside manifolds and can handle flow up to 500 lpm (132 gpm) and pressures at 420 bar (6,000 psi) for circuit optimization and space savings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 290 days
Partner Available:	Backordered

SKU D1B125-0.0N

$147.11/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Cracking Pressure	0 PSI, 0 BAR
Flow Rate	132 GAL/MIN, 500 L/MIN	Operating Temperature	-34 to 121 °C
Actuation Type	Pressure Sensing	Filter Efficiency Rating	ISO 4406 18/16/13
Configuration	Insert	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	6000 psi	Body Material	n/a
Weight	0.6 kg	Division	Mobile Hydraulic Systems Division Europe
Connection Type	n/a	Operation Type	Automatic
Maximum Flow Rate	500 L/min	For Fluid Type	Synthetic Hydraulic Fluids
Maximum Operating Temperature	121 °C	Leak Rate	3 drops/min
Division	Hydraulic Cartridge Systems Division	Valve Material	Steel (all parts)
Connection Size	n/a	Seal Material	Nitrile
Maximum Inlet Pressure Rating	6000 psi	Function	Check
Flow Direction	2-1 Checked	Cracking Pressure	0 psi
Minimum Operating Temperature	-34 °C	Cavity Size	2C
Mounting Type	Inside Manifolds	Flow Rate	132 Gal/min
