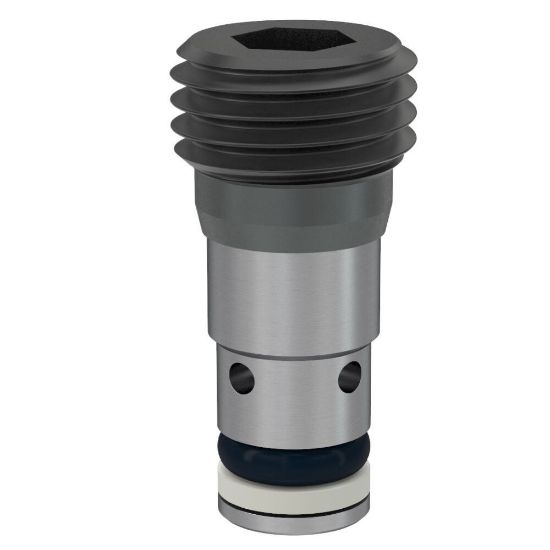

KSWA3N - Insert Shuttle Valves

Parker's insert type shuttle valves for countersinking inside manifolds are available as either poppet or ball type; capable of flows up to 38 lpm (10 gpm) and pressures up to 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 203 days
Partner Available:	Backordered

SKU KSWA3N

$40.89/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	2.5 GAL/MIN, 9.5 L/MIN
Seal Material	Nitrile	Installation Torque	10 Nm
Weight	0.01 kg	Maximum Operating Pressure	420 bar
Body Material	N/A	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Insert	Flow Rate	2.5 Gal/min
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Sensing
Operating Temperature	-30 to +250 °F	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	2.5 Gal/min	Leak Rate	10 @ 5000 PSI (350 BAR) drops/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Automatic
Division	Mobile Hydraulic Systems Division Europe	Function	Shuttle
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Nitrile
Maximum Inlet Pressure Rating	6000 psi	Maximum Operating Temperature	+121 °C
Cavity Size	CAVSW-3	Minimum Operating Temperature	-34 °C
