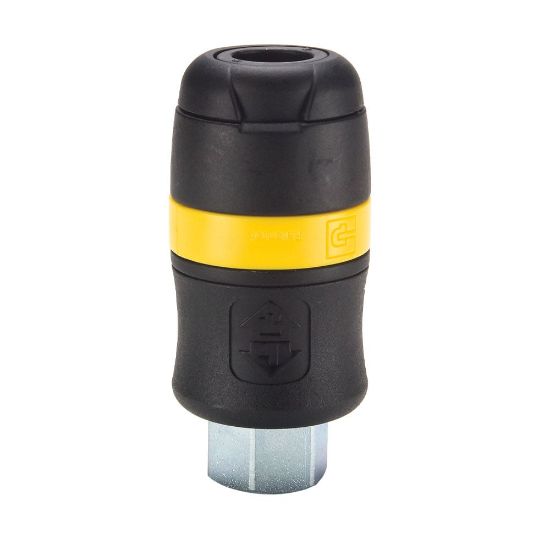

PBS-371-6FP - ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series

Parker's pressure venting pneumatic, air quick connect couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	4 in stock

SKU PBS-371-6FP

$73.67/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Interface Option	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)
Connection Thread Size	3/8"-18	Body Size	3/8"
Connection Type	Female, NPTF	Thread Style	Female
Lock Type	Polyacetate Locking Fingers	Media	Compressed Air
Coupling Half	Coupler	Plating Type	Galvanized Steel Port Ends
Valve Type	Tubular	Division	Quick Coupling Division
Maximum Operating Temperature	160 °F	Special Option	Exhaust - Venting
Seal Material	Nitrile	Body Material	Polyamide
Maximum Operating Pressure	300 psi	Minimum Operating Temperature	0 °F
Specifications Met	ISO 4414 controlled pressure release	Sleeve Type	Push-to-Connect
Application	Air	Dimensional Weight	0.14388489208633093 lb
