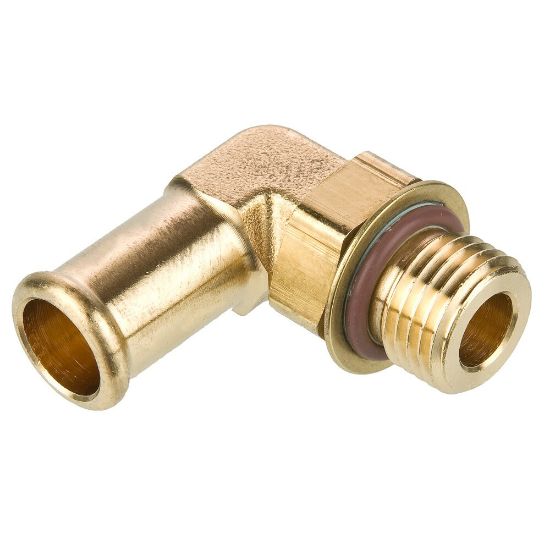

169HB-10-MI27 - ISO Port Adapters

Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 59 days
Partner Available:	27 in stock

SKU 169HB-10-MI27

$63.45/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	90° Elbow
Connection 1 Tube O.D. (inch)	5/8	Connection 2 Thread Size (inch)	M27x2.0
Style	Beaded Hose Barb to Metric	Connection 1 Style	Beaded Hose Barb
Specifications Met	ISO 6149-3, SAE 2244-3	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	150 psi	Body Material	Brass
Dimensional Weight	0.27594424460431655 lb	Division	Fluid System Connectors Division
Tube Material	Copper, Brass, J844 Type A & B Nylon Tubing	Minimum Operating Pressure	-40 psi
