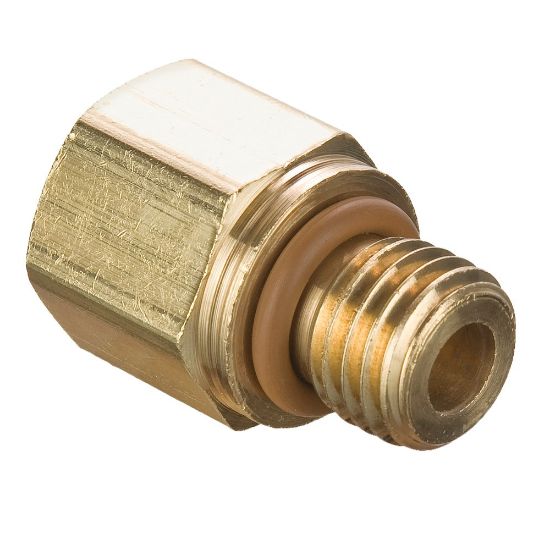

222P-8-MI27 - ISO Port Adapters

Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	2 Limited Stock

SKU 222P-8-MI27

$29.07/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Adapter
Connection 2 Thread Size (inch)	M27x2.0	Connection 1 Tube O.D. (inch)	1/2
Connection 1 Style	Female Pipe	Style	Female Pipe to Metric
Body Material	Brass	Maximum Operating Pressure	1000 psi
Specifications Met	ISO 6149-3, SAE 2244-3	Dimensional Weight	0.27594424460431655 lb
Minimum Operating Temperature	-65 °F	Maximum Operating Temperature	250 °F
Minimum Operating Pressure	-53 psi	Division	Fluid System Connectors Division
Tube Material	Copper, Brass, J844 Type A & B Nylon Tubing
