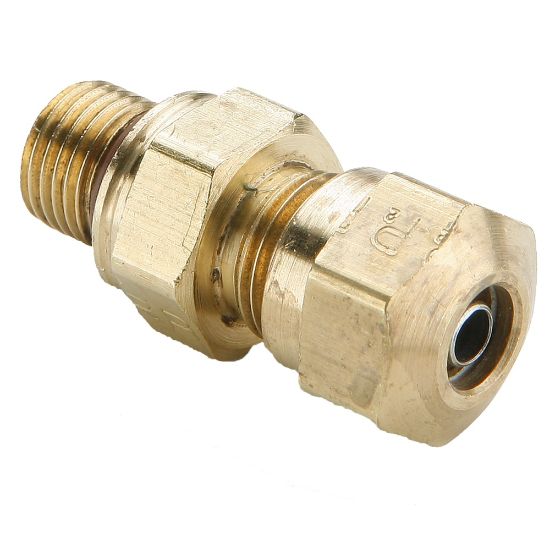

68NTA-4-MI10 - ISO Port Adapters

Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 29 days
Partner Available:	Backordered

SKU 68NTA-4-MI10

$17.51/each

Products specifications

Attribute name	Attribute value
UOM	EA	Style	Compression to Metric
Connection 2 Thread Size (inch)	M10x1.0	Connection 1 Style	Compression
Shape	Connector	Connection 1 Tube O.D. (inch)	1/4
Division	Fluid System Connectors Division	Maximum Operating Temperature	200 °F
Minimum Operating Pressure	-40 psi	Tube Material	Copper, Brass, J844 Type A & B Nylon Tubing
Specifications Met	ISO 6149-3, SAE 2244-3	Minimum Operating Temperature	-40 °F
O-Ring Material	Fluorocarbon	Body Material	Brass
Maximum Operating Pressure	10 bar

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
