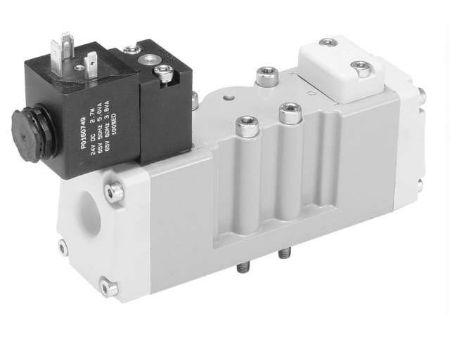

Isys ISO H1 Series Double Solenoid 4-way 3-position Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Isys ISO H1 Series Double Solenoid 4-way 3-position Valve
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | CV Factor | Center Condition | Pilot Supply | Operator Type Detail | Override Type | Pkg Qty | Offset Return Type | Solenoid Voltage | Series | CV Factor | Operator Type Detail | Operator Type | Offset Return Type | Solenoid Voltage | Valve Positions | Pneumatic Valve Type | ISO Interface | Parker Group | Center Condition | Pilot Supply | Parker Division | Series Type | Trade Name | Valve Passages | Override Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H15VXBG023D | 5 in stock | 18 in stock | $215.46/each | EA | EA | 1.5 | All Ports Blocked | Internal | Double | Non-locking | 1 | Spring Return | 120 VAC | Isys | 1.5 | Double | Solenoid | Spring Return | 120 VAC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | All Ports Blocked | Internal | Pneumatic | H1 | Isys | 4-way | Non-locking | |
| H15VXBG0B9D | Backordered | 18 in stock | $274.67/each | EA | EA | 1.5 | All Ports Blocked | Internal | Double | Non-locking | 1 | Spring Return | 24 VDC | Isys | 1.5 | Double | Solenoid | Spring Return | 24 VDC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | All Ports Blocked | Internal | Pneumatic | H1 | Isys | 4-way | Non-locking | |
| H15VXBH023D | Backordered | Backordered | $224.25/each | EA | EA | 1.5 | All Ports Blocked | Internal | Double | Locking | 1 | Spring Return | 120 VAC | Isys | 1.5 | Double | Solenoid | Spring Return | 120 VAC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | All Ports Blocked | Internal | Pneumatic | H1 | Isys | 4-way | Locking | |
| H15VXBH0B9D | Backordered | Backordered | $220.07/each | EA | EA | 1.5 | All Ports Blocked | Internal | Double | Locking | 1 | Spring Return | 24 VDC | Isys | 1.5 | Double | Solenoid | Spring Return | 24 VDC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | All Ports Blocked | Internal | Pneumatic | H1 | Isys | 4-way | Locking | |
| H15VXXG023D | Backordered | Backordered | $217.38/each | EA | EA | 1.5 | All Ports Blocked | External | Double | Non-locking | 1 | Spring Return | 120 VAC | Isys | 1.5 | Double | Solenoid | Spring Return | 120 VAC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | All Ports Blocked | External | Pneumatic | H1 | Isys | 4-way | Non-locking | |
| H15VXXG0B9D | Backordered | 6 in stock | $277.17/each | EA | EA | 1.5 | All Ports Blocked | External | Double | Non-locking | 1 | Spring Return | 24 VDC | Isys | 1.5 | Double | Solenoid | Spring Return | 24 VDC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | All Ports Blocked | External | Pneumatic | H1 | Isys | 4-way | Non-locking | |
| H15VXXH023D | Backordered | Backordered | $226.17/each | EA | EA | 1.5 | All Ports Blocked | External | Double | Locking | 1 | Spring Return | 120 VAC | Isys | 1.5 | Double | Solenoid | Spring Return | 120 VAC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | All Ports Blocked | External | Pneumatic | H1 | Isys | 4-way | Locking | |
| H15VXXH0B9D | Backordered | Backordered | $222.00/each | EA | EA | 1.5 | All Ports Blocked | External | Double | Locking | 1 | Spring Return | 24 VDC | Isys | 1.5 | Double | Solenoid | Spring Return | 24 VDC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | All Ports Blocked | External | Pneumatic | H1 | Isys | 4-way | Locking | |
| H16VXBG023D | Backordered | 3 in stock | $280.09/each | EA | EA | 1.5 | Center Exhaust | Internal | Double | Non-locking | 1 | Spring Return | 120 VAC | Isys | 1.5 | Double | Solenoid | Spring Return | 120 VAC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | Center Exhaust | Internal | Pneumatic | H1 | Isys | 4-way | Non-locking | |
| H16VXBG0B9D | Backordered | 12 in stock | $274.67/each | EA | EA | 1.5 | Center Exhaust | Internal | Double | Non-locking | 1 | Spring Return | 24 VDC | Isys | 1.5 | Double | Solenoid | Spring Return | 24 VDC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | Center Exhaust | Internal | Pneumatic | H1 | Isys | 4-way | Non-locking | |
| H16VXBH023D | Backordered | Backordered | $224.25/each | EA | EA | 1.5 | Center Exhaust | Internal | Double | Locking | 1 | Spring Return | 120 VAC | Isys | 1.5 | Double | Solenoid | Spring Return | 120 VAC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | Center Exhaust | Internal | Pneumatic | H1 | Isys | 4-way | Locking | |
| H16VXBH0B9D | Backordered | Backordered | $220.07/each | EA | EA | 1.5 | Center Exhaust | Internal | Double | Locking | 1 | Spring Return | 24 VDC | Isys | 1.5 | Double | Solenoid | Spring Return | 24 VDC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | Center Exhaust | Internal | Pneumatic | H1 | Isys | 4-way | Locking | |
| H16VXXG023D | Backordered | Backordered | $217.38/each | EA | EA | 1.5 | Center Exhaust | External | Double | Non-locking | 1 | Spring Return | 120 VAC | Isys | 1.5 | Double | Solenoid | Spring Return | 120 VAC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | Center Exhaust | External | Pneumatic | H1 | Isys | 4-way | Non-locking | |
| H16VXXG0B9D | Backordered | 2 Limited Stock | $277.17/each | EA | EA | 1.5 | Center Exhaust | External | Double | Non-locking | 1 | Spring Return | 24 VDC | Isys | 1.5 | Double | Solenoid | Spring Return | 24 VDC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | Center Exhaust | External | Pneumatic | H1 | Isys | 4-way | Non-locking | |
| H16VXXH023D | Backordered | Backordered | $226.17/each | EA | EA | 1.5 | Center Exhaust | External | Double | Locking | 1 | Spring Return | 120 VAC | Isys | 1.5 | Double | Solenoid | Spring Return | 120 VAC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | Center Exhaust | External | Pneumatic | H1 | Isys | 4-way | Locking | |
| H16VXXH0B9D | Backordered | Backordered | $222.00/each | EA | EA | 1.5 | Center Exhaust | External | Double | Locking | 1 | Spring Return | 24 VDC | Isys | 1.5 | Double | Solenoid | Spring Return | 24 VDC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | Center Exhaust | External | Pneumatic | H1 | Isys | 4-way | Locking | |
| H17VXBG023D | Backordered | 1 Limited Stock | $288.71/each | EA | EA | 1.2 | Pressure Center | Internal | Double | Non-locking | 1 | Spring Return | 120 VAC | Isys | 1.2 | Double | Solenoid | Spring Return | 120 VAC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | Pressure Center | Internal | Pneumatic | H1 | Isys | 4-way | Non-locking | |
| H17VXBG0B9D | Backordered | 1 Limited Stock | $283.28/each | EA | EA | 1.2 | Pressure Center | Internal | Double | Non-locking | 1 | Spring Return | 24 VDC | Isys | 1.2 | Double | Solenoid | Spring Return | 24 VDC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | Pressure Center | Internal | Pneumatic | H1 | Isys | 4-way | Non-locking | |
| H17VXBH023D | Backordered | Backordered | $230.87/each | EA | EA | 1.2 | Pressure Center | Internal | Double | Locking | 1 | Spring Return | 120 VAC | Isys | 1.2 | Double | Solenoid | Spring Return | 120 VAC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | Pressure Center | Internal | Pneumatic | H1 | Isys | 4-way | Locking | |
| H17VXBH0B9D | Backordered | Backordered | $226.70/each | EA | EA | 1.2 | Pressure Center | Internal | Double | Locking | 1 | Spring Return | 24 VDC | Isys | 1.2 | Double | Solenoid | Spring Return | 24 VDC | 3-position | Plug-in Valve | ISO 5599-2, Plug-in, Size 1 (H1) | Automation | Pressure Center | Internal | Pneumatic | H1 | Isys | 4-way | Locking |
