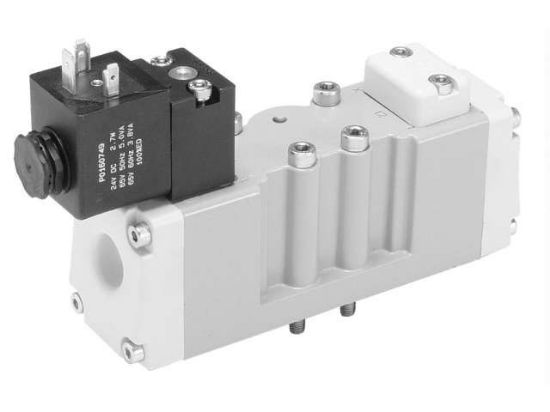

H11VXXG023D - Isys ISO H1 Series Single Solenoid 4-way 2-position Valve

Isys ISO H1 Series Single Solenoid 4-way 2-position Valve

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU H11VXXG023D

$138.91/each

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Solenoid Voltage	120 VAC	CV Factor	1.2
Pilot Supply	External	Operator Type Detail	Single
Pkg Qty	1	Override Type	Non-locking
Offset Return Type	Air Return	Operator Type Detail	Single
Parker Division	Pneumatic	Valve Passages	4-way
Override Type	Non-locking	Series	Isys
Operator Type	Solenoid	Pneumatic Valve Type	Plug-in Valve
Solenoid Voltage	120 VAC	ISO Interface	ISO 5599-2, Plug-in, Size 1 (H1)
Parker Group	Automation	Offset Return Type	Air Return
CV Factor	1.2	Pilot Supply	External
Valve Positions	2-position	Series Type	H1
Trade Name	Isys
