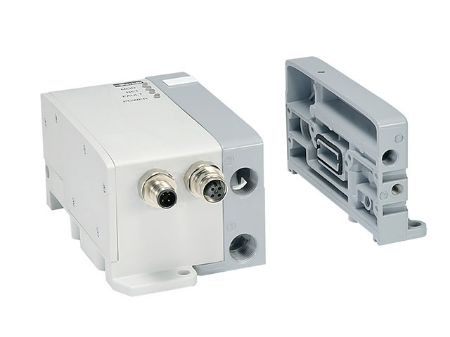

Isys Micro Fieldbus End Plate Kits
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Port | Port Location | Pkg Qty | Pneumatic Valve Type | Trade Name | Supply Pressure Range | Enclosure Type | Operating Temperature | Series | Port | Parker Division | Parker Group | Port Type | Port Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PSML62AP | Backordered | Backordered | $238.32/each | EA | EA | 3/8 BSPP | Bottom Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Isysnet with valve driver module | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 BSPP | Pneumatic | Automation | BSPP | Bottom Ported Base | |
| PSML65AP | Backordered | Backordered | $238.32/each | EA | EA | 3/8 NPT | Side Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Isysnet with valve driver module | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 NPT | Pneumatic | Automation | NPT | Side Ported Base | |
| PSMM41AP | Backordered | Backordered | $75.45/each | EA | EA | 3/8 BSPP | Side Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Moduflex 16 outputs | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 BSPP | Pneumatic | Automation | BSPP | Side Ported Base | |
| PSMM42AP | Backordered | Backordered | $75.45/each | EA | EA | 3/8 BSPP | Bottom Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Moduflex 16 outputs | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 BSPP | Pneumatic | Automation | BSPP | Bottom Ported Base | |
| PSMM45AP | Backordered | 2 Limited Stock | $98.09/each | EA | EA | 3/8 NPT | Side Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Moduflex 16 outputs | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 NPT | Pneumatic | Automation | NPT | Side Ported Base | |
| PSMM46AP | Backordered | Backordered | $75.45/each | EA | EA | 3/8 NPT | Bottom Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Moduflex 16 outputs | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 NPT | Pneumatic | Automation | NPT | Bottom Ported Base | |
| PSMM51AP | Backordered | Backordered | $274.43/each | EA | EA | 3/8 BSPP | Side Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Isysnet with valve driver module and bus extension connector | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 BSPP | Pneumatic | Automation | BSPP | Side Ported Base | |
| PSMM52AP | Backordered | Backordered | $274.43/each | EA | EA | 3/8 BSPP | Bottom Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Isysnet with valve driver module and bus extension connector | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 BSPP | Pneumatic | Automation | BSPP | Bottom Ported Base | |
| PSMM55AP | Backordered | Backordered | $274.43/each | EA | EA | 3/8 NPT | Side Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Isysnet with valve driver module and bus extension connector | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 NPT | Pneumatic | Automation | NPT | Side Ported Base | |
| PSMM56AP | Backordered | Backordered | $274.43/each | EA | EA | 3/8 NPT | Bottom Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Isysnet with valve driver module and bus extension connector | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 NPT | Pneumatic | Automation | NPT | Bottom Ported Base | |
| PSMM61AP | Backordered | Backordered | $281.63/each | EA | EA | 3/8 BSPP | Side Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Isysnet with valve driver module and 24VDC connector | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 BSPP | Pneumatic | Automation | BSPP | Side Ported Base | |
| PSMM62AP | Backordered | Backordered | $281.63/each | EA | EA | 3/8 BSPP | Bottom Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Isysnet with valve driver module and 24VDC connector | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 BSPP | Pneumatic | Automation | BSPP | Bottom Ported Base | |
| PSMM65AP | Backordered | Backordered | POR | EA | EA | 3/8 NPT | Side Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Isysnet with valve driver module and 24VDC connector | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 NPT | Pneumatic | Automation | NPT | Side Ported Base | |
| PSMM71AP | Backordered | Backordered | $310.54/each | EA | EA | 3/8 BSPP | Side Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Isysnet with valve driver module, bus extension connector and 24VDC connector | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 BSPP | Pneumatic | Automation | BSPP | Side Ported Base | |
| PSMM72AP | Backordered | Backordered | $310.54/each | EA | EA | 3/8 BSPP | Bottom Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Isysnet with valve driver module, bus extension connector and 24VDC connector | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 BSPP | Pneumatic | Automation | BSPP | Bottom Ported Base | |
| PSMM76AP | Backordered | Backordered | POR | EA | EA | 3/8 NPT | Bottom Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Isysnet with valve driver module, bus extension connector and 24VDC connector | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 NPT | Pneumatic | Automation | NPT | Bottom Ported Base | |
| PSMT11AP | Backordered | Backordered | $260.06/each | EA | EA | 3/8 BSPP | Side Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Turck fieldbus with valve driver module - 16 outputs | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 BSPP | Pneumatic | Automation | BSPP | Side Ported Base | |
| PSMT15AP | Backordered | Backordered | $260.06/each | EA | EA | 3/8 NPT | Side Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Turck fieldbus with valve driver module - 16 outputs | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 NPT | Pneumatic | Automation | NPT | Side Ported Base | |
| PSMT16AP | Backordered | Backordered | $260.06/each | EA | EA | 3/8 NPT | Bottom Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Turck fieldbus with valve driver module - 16 outputs | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 NPT | Pneumatic | Automation | NPT | Bottom Ported Base | |
| PSMT21AP | Backordered | Backordered | $404.44/each | EA | EA | 3/8 BSPP | Side Ported Base | 1 | End Plate Kits | Isys Micro | Vacuum to 145 PSIG (Vacuum to 10 bar) | Turck fieldbus with valve driver module - 32 outputs | 5°F to 120°F (-15°C to 49°C) | Isys Micro | 3/8 BSPP | Pneumatic | Automation | BSPP | Side Ported Base |
