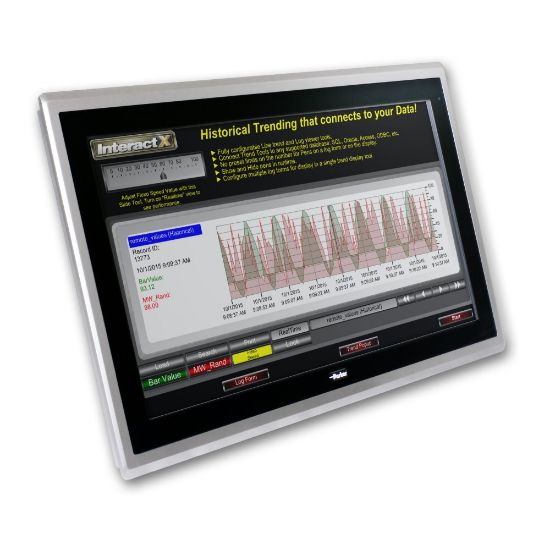

IXA-022-3P3-55 - IX InteractX PowerStation

This product is obsolete. Please contact a Parker Representative for more information. The IX offers the software power, features, and flexibility normally reserved for SCADA level applications.
Manufacturer: Parker
Availability:
Backordered
Estimated Lead Time: 3 days
Partner Available:Backordered
SKU IXA-022-3P3-55
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACertificatesClass I Div 2, CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH
Display Size21.5" TouchscreenInterface TypeProjective capacitive
Input Voltage12 to 24Inputs/OutputsDual 1GB Ethernet
Operating SystemWindows Standard Embedded 7PProduct TypeWindows HMI
Interface TypeProjective CapacitiveResolution1920 x 1080
Client Data Storage64 GB SSDSystem Memory4GB DRAM (DDR3L 1600 MHz)
Operating Temperature0 to 50Specifications MetCE
CPU1.86 GHz Quad CoreBacklight Life30000
Ingress Protection RatingIP65 (front bezel)Operating Humidity10 to 90 % @ 40°C (non-condensing)
DivisionElectronic Motion and Controls DivisionDisplay Size7
Display Type-SoftwareInteractX 4.0
