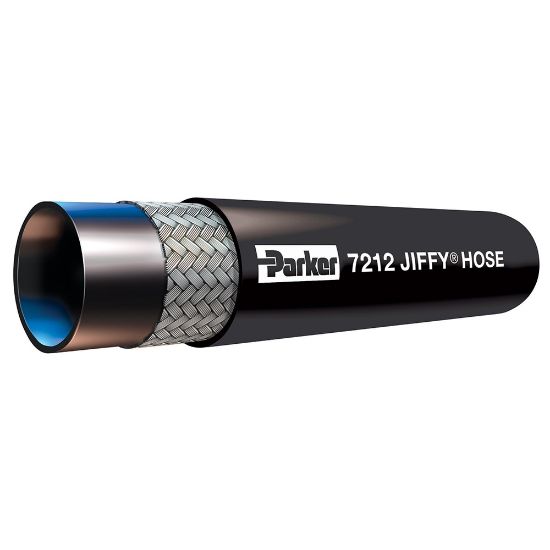

7212-501GN - JIFFY™ Push-On Multipurpose Oil Resistant Hose, Series 7212

Name: 7212-501GN - JIFFY™ Push-On Multipurpose Oil Resistant Hose, Series 7212
SKU: 7212-501GN
Price: 3.51 USD
Availability: InStock

Jiffy Push-On/Push Lock Oil Resistant Multipurpose Rubber Hose is designed to transfer air, mild chemicals, oil, water and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to 212°F and 300 psi, Series 7212.

Manufacturer: Parker

Availability:

1293 in stock

Olivette, MO

1,293

Partner Available:

2010 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7212-501GN

$3.51/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Color	Green	Maximum Working Pressure (psi)	300
Standard Pack Qty (ft)	600	Inside Diameter	1/2 inch
Weight	0.15 lb/ft	Vacuum Pressure Rating	28 Inch-Hg
Maximum Operating Pressure	20.7 bar	Package Type	Reel
Outside Diameter	19.1 mm	Division	Hose Products Division
Cover Color	Green	Media	Lubricants (Oils)
Design Factor	4:1	Maximum Operating Temperature	158 °F (Air)
Hose Inner Tube Material	Nitrile	Compatible Fitting	HY Series
Hose Reinforcement Material	1 Braid of Textile	Application	Push-On Hose
Specifications Met	MSHA	Cover Structure	Smooth
Minimum Bend Radius	127 mm	Cover Material	Chloroprene Rubber (CR)
Minimum Operating Temperature	-40 °F
