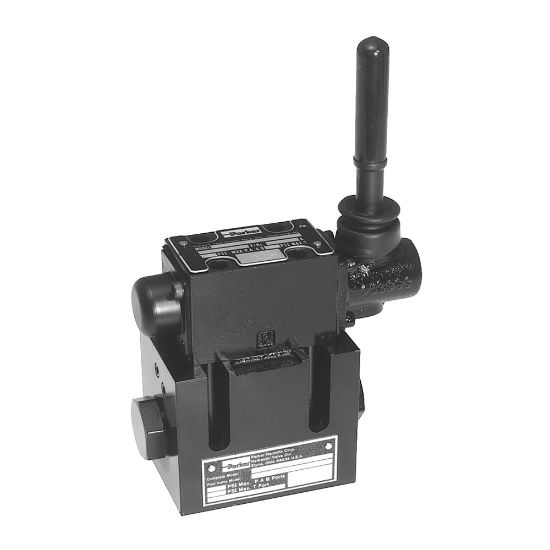

D31VL001C4N - Lever Operated Directional Control Valve - D31DL, D31VL Series

Parker’s D31*L directional control valves are 5-chamber, pilot operated, lever controlled valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU D31VL001C4N

$1,415.40/each

Products specifications

Attribute name	Attribute value
UOM	EA	Size	NFPA D05H, CETOP 5
Mounting Type	Subplate	Maximum Operating Pressure	5000 PSI
Maximum Flow Rate	Up to 40 GPM depending on spool	Spool Code	3-Position
Actuation Type	Hydraulic Pressure	Weight	5.4 kg
Maximum Operating Pressure	5000 psi	Body Material	Gray Iron
Division	Hydraulic Valve Systems Division	Spool Position	3-Position
Maximum Flow Rate	40 Gal/min	Valve Type	Lever Operated Directional Control Valve
Seal Material	Nitrile	Options	n/a
Maximum Operating Temperature	140 °F	Minimum Operating Temperature	-4 °F
Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain	Mounting Type	Subplate
