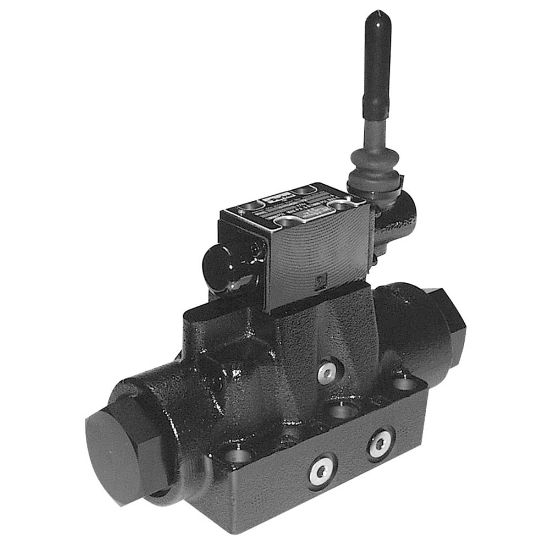

D61VL001C4V - Lever Operated Directional Control Valve - D61VL Series

Parker’s D61VL directional control valves are 5-chamber, lever operated valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU D61VL001C4V

$1,745.52/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000 PSI
Mounting Type	Subplate	Maximum Flow Rate	Up to 100 GPM depending on spool
Size	NFPA D08, CETOP 8, DIN NG25	Mounting Type	Subplate
Minimum Operating Temperature	-4 °F	Actuation Type	Hydraulic Pressure
Body Material	Gray Iron	Spool Code	4-Way
Maximum Operating Pressure	3000 psi	Weight	12.1 kg
Maximum Operating Temperature	140 °F	Size	NFPA D08
Seal Material	Fluorocarbon	Spool Position	Double Operator
Valve Type	Lever Operated Directional Control Valve	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	100 Gal/min	Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain
Options	n/a
