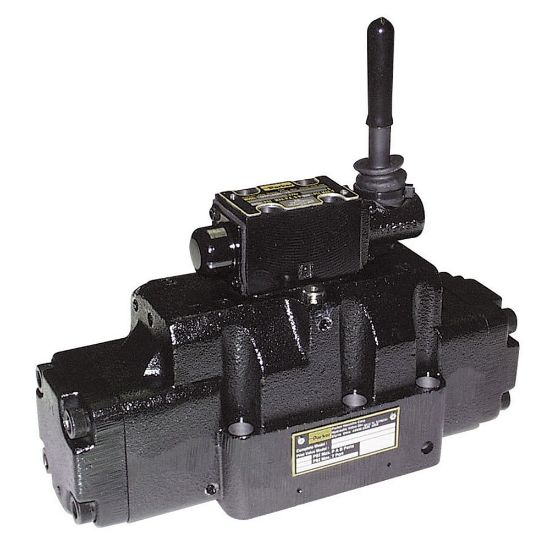

D81VL001C4N - Lever Operated Directional Control Valve - D81VL Series

Parker’s D81VL directional control valves are 5-chamber, lever operated valves

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 112 days
Partner Available:	Backordered

SKU D81VL001C4N

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Grey Iron
Actuation Type	Hydraulic Pressure	Spool Code	4-way, 3 position; All Ports Blocked
Weight	26.7	Maximum Operating Pressure	5000
Spool Position	Double Operator, 3 position, spring centered	Valve Type	Lever Operated Directional Control Valve
Maximum Flow Rate	160	Division	Hydraulic Valve Systems Division
Options	N/A	Maximum Operating Temperature	+140
Size	NFPA D08, CETOP 8, NG25	Seal Material	Nitrile
Mounting Type	Subplate	Minimum Operating Temperature	-4
Pilot Inlet / Drain Locations	Int. Pilot/Int. Drain

Product resources

Literature and Reference Materials

Lever Operated Directional Control Valve Catalog - D81VL Series (PDF)
