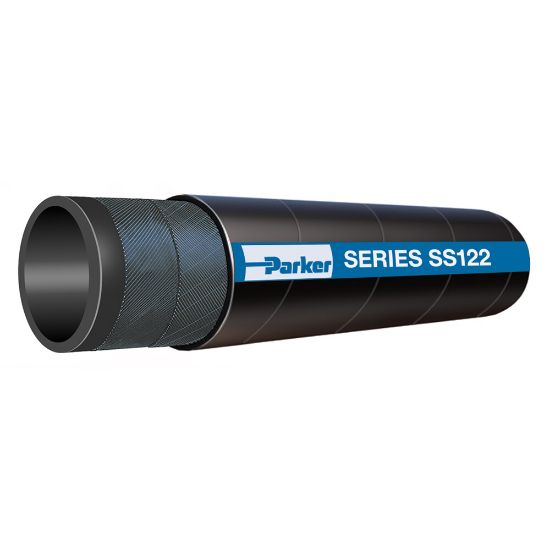

SS122-4000 - Lightweight Water Jetting Hose, Series SS122

Note: This product is no longer available - please contact us for further assistance

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	Backordered

SKU SS122-4000

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	4
Cover Material	Styrene Butadiene Rubber (SBR)	Minimum Operating Temperature	-40 °F
Hose Reinforcement Material	Mutiple Plies of Textile	Cover Structure	Wrapped
Minimum Bend Radius	n/a	Application	Water Jetting
Nominal Hose Inside Diameter	100 mm	Weight	3.13 kg/m
Maximum Operating Pressure	3.5 MPa	Inside Diameter	31.8 to 101.6 mm
Outside Diameter	4.660 inch	Cover Color	Black
Size	-64	Division	Hose Products Division
Length per Package	100 ft	Maximum Operating Temperature	180 °F
Hose Inner Tube Material	Black	Media	Water
Base number	SS122
