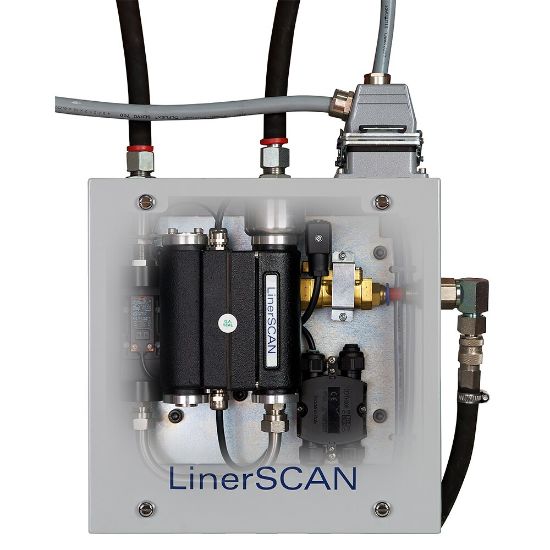

FG-K17400-KW - LinerSCAN - Cylinder Liner Monitor

Parker LinerScan system is designed to remove the uncertainty of cylinder damage resulting from low fuel quality, slow steaming, low sulphur levels, lower oil feed rates and cylinder oil formulation changes.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU FG-K17400-KW

Products specifications

Attribute name	Attribute value
UOM	EA	Options	one per cylinder
Seal Material	Fluorcarbon	Height	300
Product Type	Condition Monitor	Port Size	1/2
Operating Pressure	10	Technology	Filtration
Communication Interface	CANbus	Division	Hydraulic & Industrial Process Filtration Division EMEA
Ingress Protection Rating	IP65	Sensing Method	Ferrography
For Fluid Type	Cylinder Oil	Industry	Marine
Division	Hydraulic & Industrial Process Filtration Division EMEA	Width	94
Operating Temperature	0 to 65	Flow Rate	> 30
Materials of Construction	Mild Steel	Port Type	BSP
Body Material	Mild Steel	Minimum Fluid Temperature	10
Weight	17	Air Inlet Connection Size	1/2” BSP
Length	300	Electrical Requirements	24
Cycle Time	30	Maximum Fluid Temperature	65
Brand	Kittiwake	Signal Output	4 to 20
Specifications Met	CE Certification	Product Style	Particle Detector/Counter

Product resources

Literature and Reference Materials

BROCHURE-LinerSCAN - Cylinder Liner Monitor (PDF)
