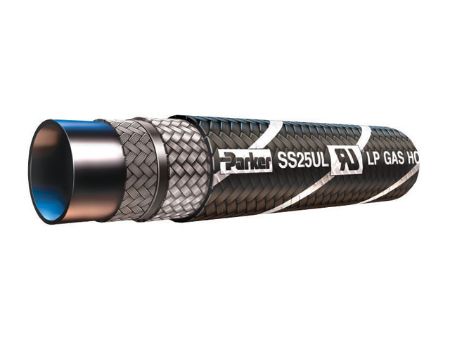

Liquefied Petroleum Gas Hose 350 PSI - SS25UL Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's SS25UL hose is a liquefied petroleum gas hose that has a constant working pressure of 350 PSI to deliver consistency and reliability. The SS25UL hose is designed, built, and tested to meet UL 21 and NFPA 58 specifications. Sizes range from 3/16” to 5/8” in diameter to fit the requirements of various markets.

Markets:
• Transportation
• Agriculture
• Material Handling

Features/Benefits:
• 350 PSI constant working pressure in different sizes
• Low-pressure service with liquefied petroleum gas
• UL 21 / NFPA 58 certifications
• Oil and LPG resistant synthetic fiber cover
• One fiber braid and one stainless steel wire braid

Applications:
• Liquefied petroleum gas (LPG)

Compatible Fittings:
• 26 series fittings
• 20 series fittings
• 22 series fittings

Warnings:

• Do not use hose for natural gas service where fixed/rigid pipe is more appropriate due to reduced permeation and overall strength and durability. Use rigid pipe, non-permeable tubing or hose with barrier constructions to convey natural gas whenever possible.

• Strictly adhere to the inspection procedures detailed in DOT regulation 49CFR 180.416 when using this product in a mobile application such as delivery or service vehicles.

•It is an industry recognized occurrence that LPG will permeate through the hose wall during operation and storage, therefore Parker LPG hoses are produced with a pinpricked cover from the factory to relief the expansion of liquid propane to gaseous propane as it permeates through the hose wall. Great care must be taken when discharging LPG hose to reduce the incident of damaging the hose from explosive decompression. RELEASE LPG AT A RATE THAT ALLOWS THE TRAPPED LPG TO DISSIPATE AS SLOWLY AS POSSIBLE. See the Tech Alert – LPG Hose Evacuation Process for more information from your LPG Distributor.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Hose I.D. (size)	Minimum Operating Temperature	Minimum Bend Radius	Application	Hose Reinforcement Material	Specifications Met	Nominal Hose Inside Diameter	Outside Diameter	Maximum Operating Pressure	Inside Diameter	Weight	Division	Compatible Fitting	Maximum Operating Temperature	Hose Inner Tube Material	Media	Hose Cover Type	Material	Inner Diameter	Working Pressure	Pkg Qty	Pkg Qty/UOM	Mating Fitting Series	Parker Division	Inch/Metric	Inner Diameter	Parker Group	Application	Inner Diameter Inch/mm	Working Pressure Range	Hose Pressure Range	Hose Category	Mating End Fitting Series	Material	Series
SS25UL-10	291 in stock	47 in stock	$27.75/foot	FT	FT	-10	-40 °C	2-1/4 inch	Liquefied Petroleum Gas (LPG)	1 Braid of Fiber	UL 21.0	12 mm	0.920 inch	2.4 MPa	1/2 inch	0.29 lb/ft	Hose Products Division	22 Series	250 °F	Synthetic Rubber	Welding Gases (Technical Gases)	Standard Cover	Rubber	0.5 Inch	350 PSI (20 bar)	275	275 FT	26, 20, 22	Hose Products	Inch	0.5 Inch	Fluid Connector	Transportation LP Gas	Inch	250 to 499 PSI (17 to 34 bar)	Low	Petroleum	26, 20, 22	Rubber	SS25UL
SS25UL-12	9 in stock	49 in stock	$34.18/foot	FT	FT	-12	-40 °C	70 mm	Liquefied Petroleum Gas (LPG)	1 Braid of Fiber	UL 21.0	16 mm	27.4 mm	2.4 MPa	16 mm	0.55 kg/m	Hose Products Division	22 Series	250 °F	Synthetic Rubber	Welding Gases (Technical Gases)	Standard Cover	Rubber	0.625 Inch	350 PSI (20 bar)	250	250 FT	26, 20, 22	Hose Products	Inch	0.625 Inch	Fluid Connector	Transportation LP Gas	Inch	250 to 499 PSI (17 to 34 bar)	Low	Petroleum	26, 20, 22	Rubber	SS25UL
SS25UL-4	Backordered	350 in stock	$21.07/foot	FT	FT	-4	-40 °F	20 mm	Liquefied Petroleum Gas (LPG)	1 Braid of Fiber	AGA-AS	5 mm	13.2 mm	350 psi	5 mm	0.11 lb/ft	Hose Products Division	22 Series	250 °F	Synthetic Rubber	Welding Gases (Technical Gases)	Standard Cover	Rubber	0.188 Inch	350 PSI (20 bar)	300	300 FT	26, 20, 22	Hose Products	Inch	0.188 Inch	Fluid Connector	Transportation LP Gas	Inch	250 to 499 PSI (17 to 34 bar)	Low	Petroleum	26, 20, 22	Rubber	SS25UL
SS25UL-5	40 in stock	1264 in stock	$17.26/foot	FT	FT	-5	-40 °F	25 mm	Liquefied Petroleum Gas (LPG)	1 Braid of Fiber and 1 Braid of Stainless Steel Wire	AGA-AS	6 mm	14.8 mm	2.4 MPa	1/4 inch	0.19 kg/m	Hose Products Division	20 Series	250 °F	Synthetic Rubber	Welding Gases (Technical Gases)	Standard Cover	Rubber	0.25 Inch	350 PSI (20 bar)	250	250 FT	26, 20, 22	Hose Products	Inch	0.25 Inch	Fluid Connector	Transportation LP Gas	Inch	250 to 499 PSI (17 to 34 bar)	Low	Petroleum	26, 20, 22	Rubber	SS25UL
SS25UL-6	Backordered	4665 in stock	$22.61/foot	FT	FT	-6	-40 °F	30 mm	Liquefied Petroleum Gas (LPG)	1 Braid of Fiber	AS/NZS 1869D	8 mm	17.2 mm	350 psi	5/16 inch	0.27 kg/m	Hose Products Division	22 Series	121 °C	Synthetic Rubber	Welding Gases (Technical Gases)	Standard Cover	Rubber	0.313 Inch	350 PSI (20 bar)	200	200 FT	26, 20, 22	Hose Products	Inch	0.313 Inch	Fluid Connector	Transportation LP Gas	Inch	250 to 499 PSI (17 to 34 bar)	Low	Petroleum	26, 20, 22	Rubber	SS25UL
SS25UL-8	Backordered	981 in stock	$25.26/foot	FT	FT	-8	-40 °C	1-3/4 inch	Liquefied Petroleum Gas (LPG)	1 Braid of Fiber and 1 Braid of Stainless Steel Wire	UL 21.0	10 mm	0.770 inch	2.4 MPa	10 mm	0.21 lb/ft	Hose Products Division	22 Series	250 °F	Synthetic Rubber	Welding Gases (Technical Gases)	Standard Cover	Rubber	0.406 Inch	350 PSI (20 bar)	350	350 FT	26, 20, 22	Hose Products	Inch	0.406 Inch	Fluid Connector	Transportation LP Gas	Inch	250 to 499 PSI (17 to 34 bar)	Low	Petroleum	26, 20, 22	Rubber	SS25UL
