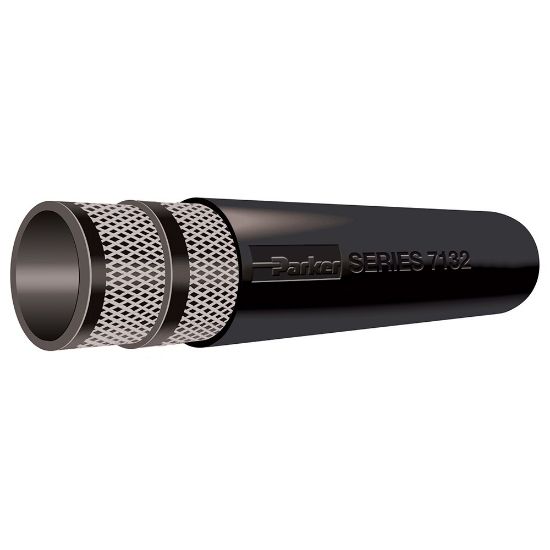

7132-75354100 - Liquid Petroleum Gas LPG Hose, Series 7132

Liquid Petroleum Gas LPG Hose is designed for delivery, supply and transfer of propane in commercial and industrial applications to 140°F and 350 psi, Series 7132

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU 7132-75354100

$12.73/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Standard Pack Qty (ft)	2 x 100	Maximum Working Pressure (psi)	350
Media	Propane	Hose Inner Tube Material	Nitrile
Specifications Met	UL 21.0	Application	Liquefied Petroleum Gas (LPG)
Cover Material	Chloroprene Rubber (CR)	Hose Reinforcement Material	4 Plies of Textile
Minimum Operating Temperature	-40 °C	Cover Structure	Smooth
Minimum Bend Radius	6.5 inch	Weight	0.5 lb/ft
Cover Color	Black	Outside Diameter	31.8 mm
Maximum Operating Pressure	24.1 bar	Package Type	Carton
Inside Diameter	19.1 mm	Division	Hose Products Division
Compatible Fitting	HY Series	Maximum Operating Temperature	82 °C
