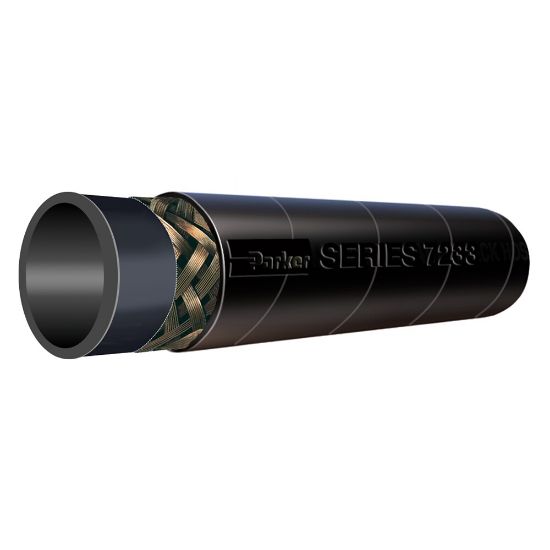

7233-311 - Liquid Petroleum Gas LPG Hose, Series 7233

Liquid Petroleum Gas LPG Hose is designed for propane fuel line service on forklift and utility vehicle applications in applications to 140°F and 350 psi, Series 7233

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	372 in stock

SKU 7233-311

$14.33/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Package Type	Reel
Inside Diameter	7.9 mm	Outside Diameter	0.675 inch
Maximum Operating Pressure	24.1 bar	Application	Petroleum
Specifications Met	UL 21.0	Cover Color	Black
Weight	0.19 lb	Tube Material	Nitrile
Hose Inner Tube Material	Nitrile	Media	LPG
Maximum Operating Temperature	82 °C	Length per Package	500 ft
Compatible Fitting	HY Series	Division	Hose Products Division
Hose Reinforcement Material	1 Braid of Stainless Steel Wire	Minimum Bend Radius	4 inch
Cover Structure	Perforated	Cover Material	Chloroprene Rubber (CR)
Minimum Operating Temperature	-40 °F

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
