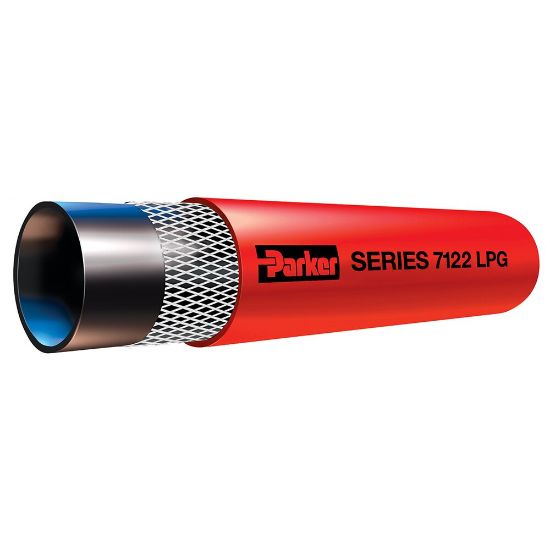

7122-38200 - Liquid Petroleum Gas Vapor Hose, Series 7122

Liquid Petroleum Gas Vapor Hose is designed for light duty propane vapor line service light duty in applications to 140°F and 125 psi, Series 7122

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU 7122-38200

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	125	Hose Reinforcement Material	2 Plies of Textile
Specifications Met	n/a	Application	Petroleum
Minimum Bend Radius	3.8 inch	Minimum Operating Temperature	-29 °C
Cover Material	Chloroprene Rubber (CR)	Cover Structure	Perforated
Inside Diameter	3/8 inch	Weight	0.22 kg/m
Maximum Operating Pressure	125 psi	Cover Color	Red
Package Type	Reel	Outside Diameter	0.656 inch
Length per Package	700 ft	Division	Hose Products Division
Compatible Fitting	HY Series	Maximum Operating Temperature	160 °F
Media	Propane (Vapor Only)	Hose Inner Tube Material	Nitrile

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
