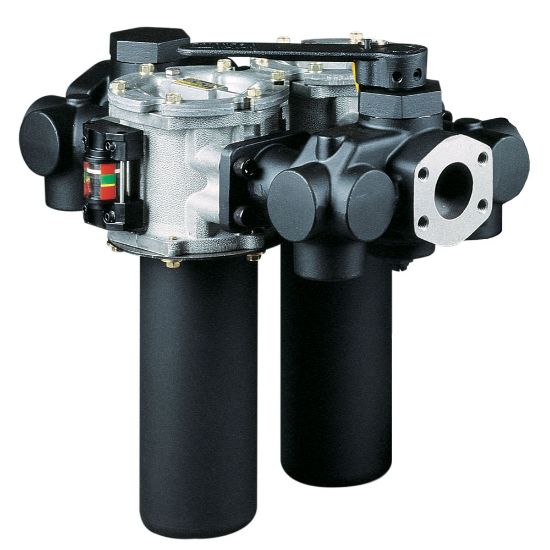

DILP210QVDD35Y9Y91 - Low Pressure Inline Filter Moduflow™ Plus Series

Parker's Moduflow™ Plus series suction/return/duplex patented filter element features longer life and increased dirt capacity. Allowable operating pressure of 200PSI/13.8Bar and capable of flows up to 150GPM/581LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU DILP210QVDD35Y9Y91

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Port Connection Type	2 inch SAE flange face, 2 inch SAE flange face	Filter Element	10Q Microglass
Flow Rate (gpm)	70	Bypass Valve (psi)	35
Indicator Type	Electrical 3-pin, Electrical 3-pin	Options	None
Indicator Pressure Setting	2.17 bar	Weight	29.5 kg
Maximum Operating Temperature	275 °F	Seal Material	Fluorocarbon
Filter Element Type	10Q Microglass	Pressure Rating	200 psi
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Housing Material	Aluminum	Bypass Valve Pressure Rating	35 psi
Options	None	Flow Rate	265 L/min
Port Type	2 inch SAE flange face, 2 inch SAE flange face	Compatible Element	937407Q
Mounting Type	Inline	Indicator Type	Electrical 3-pin, Electrical 3-pin
