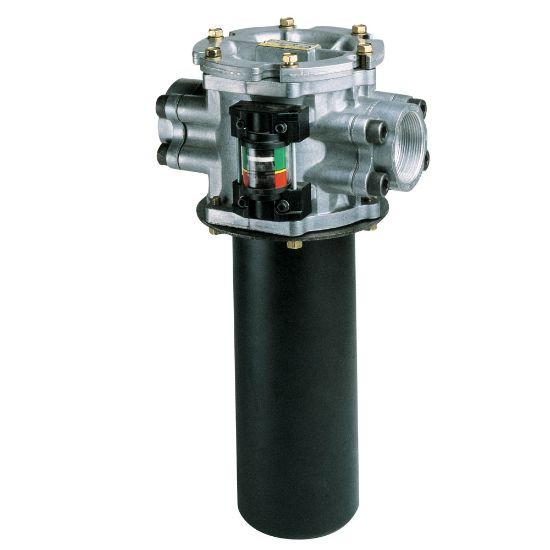

ILP102QBMP35P9P91 - Low Pressure Inline Filter Moduflow™ Plus Series

Parker's Moduflow™ Plus series suction/return/duplex patented filter element features longer life and increased dirt capacity. Allowable operating pressure of 200PSI/13.8Bar and capable of flows up to 150GPM/581LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU ILP102QBMP35P9P91

$637.35/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element	02Q Microglass	Options	None
Bypass Valve (psi)	35	Flow Rate (gpm)	90
Indicator Type	Visual, Port Plugged	Port Connection Type	SAE-24, SAE-24
Indicator Type	Visual, Port Plugged	Housing Material	Aluminum
Bypass Valve Pressure Rating	35 psi	Port Type	SAE-24, SAE-24
Flow Rate	90 Gal/min	Compatible Element	937393Q
Mounting Type	Inline	Indicator Pressure Setting	31.5 psi
Filter Element Type	02Q Microglass	Weight	9.1 kg
Seal Material	Nitrile	Options	None
Maximum Operating Temperature	107 °C	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Pressure Rating	200 psi
