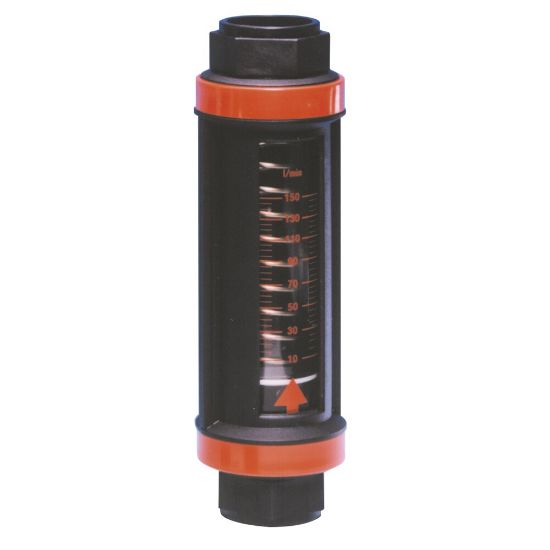

EF7731110120 - Low Pressure Mechanical Flowmeter – Easiflow

The Easiflow line comprises a range of highly economical, inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 to 150 L/MIN. Maximum allowable working pressure: 10 bar.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	Backordered

SKU EF7731110120

$472.06/each

Products specifications

Attribute name	Attribute value
UOM	EA	Switch Type	No Switch
For Fluid Type	Oil	Flow Rate	1 to 15 l/min
Communication Interface	n/a	Division	Hydraulic & Industrial Process Filtration Division EMEA
Industry	Off-Road Machinery	Sensing Method	Variable Oriface Flowmeter
Ingress Protection Rating	n/a	For Fluid Type	Water
Height	60 mm	Width	60 mm
Division	Hydraulic & Industrial Process Filtration Division EMEA	Port Type	BSP
Operating Temperature	5 to 80 °C	Materials of Construction	Borosilicate Glass
Flow Rate	1 to 15 L/min	Minimum Fluid Temperature	+5 °C
Body Material	Glass Filled Nylon	Length	196 mm
Maximum Fluid Temperature	+80 °C	Cycle Time	n/a
Diameter	60 mm	Electrical Requirements	n/a
Brand	Parker	Signal Output	n/a
ATEX Specifications Met	n/a	Specifications Met	Pressure Directive
Product Style	Flow Meter	Seal Material	Nitrile
Operating Humidity	n/a	Product Type	Condition Monitor
Port Size	1 inch	Technology	Filtration
Accuracy	+/- 5% FSD	Operating Pressure	145 psi

Product resources

Literature and Reference Materials

Easiflow_Flowmeters_bulletin.pdf (PDF)
