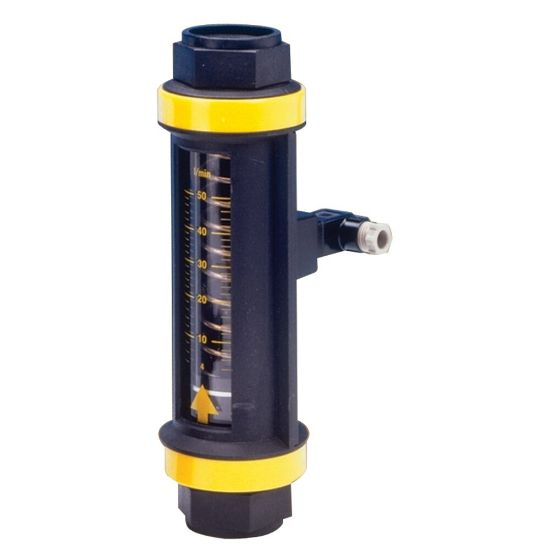

EF7731111220 - Low Pressure Mechanical Flowmeter – Easiflow

The Easiflow line comprises a range of highly economical, inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 to 150 L/MIN. Maximum allowable working pressure: 10 bar.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 89 days
Partner Available:	Backordered

SKU EF7731111220

$513.28/each

Products specifications

Attribute name	Attribute value
UOM	EA	Switch Type	No Switch
Flow Rate	2 to 30 l/min	For Fluid Type	Water
Length	196 mm	ATEX Specifications Met	n/a
Maximum Fluid Temperature	+80 °C	Brand	Parker
Electrical Requirements	n/a	Signal Output	n/a
Specifications Met	Pressure Directive	Diameter	60 mm
Cycle Time	n/a	Product Style	Flow Meter
Seal Material	Nitrile	Technology	Filtration
Operating Humidity	n/a	Accuracy	+/- 5% FSD
Product Type	Condition Monitor	Port Size	1 inch
Operating Pressure	10 bar	Industry	Industrial Manufacturing Equipment
Division	Hydraulic & Industrial Process Filtration Division EMEA	Communication Interface	n/a
Ingress Protection Rating	n/a	Sensing Method	Variable Oriface Flowmeter
Division	Hydraulic & Industrial Process Filtration Division EMEA	Width	60 mm
Height	60 mm	For Fluid Type	Water
Operating Temperature	5 to 80 °C	Port Type	BSP
Flow Rate	2 to 30 L/min	Materials of Construction	Borosilicate Glass
Minimum Fluid Temperature	+5 °C	Body Material	Glass Filled Nylon

Product resources

Literature and Reference Materials

Easiflow_Flowmeters_bulletin.pdf (PDF)
