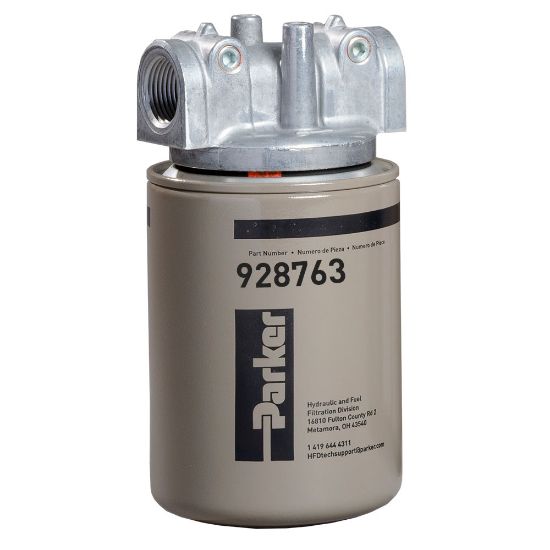

12AT110BBPGS12H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	10 in stock

SKU 12AT110BBPGS12H

$107.95/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Flow Rate (gpm)	13
Indicator Type	Sold separately	Bypass Valve (psi)	25
Port Connection Type	SAE-12 ports	Filter Element	10 micron microglass
Bypass Valve Pressure Rating	25	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Housing Material	Low Carbon Steel	Compatible Element	928763
Indicator Type	Sold separately	Mounting Type	Inline
Flow Rate	49	Port Type	SAE-12 ports
Indicator Pressure Setting	1.4	Weight	1.6
Pressure Rating	10.3	Filter Element Type	10 micron microglass
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.	Maximum Operating Temperature	107
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
