12AT110BBPXN12H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 12AT110BBPXN12H

$83.04/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Bypass Valve (psi)	No Bypass	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Flow Rate (gpm)	13	Indicator Type	Sold separately
Port Connection Type	3/4" NPT ports	Filter Element	10 micron microglass
Weight	1.6	Indicator Pressure Setting	No Bypass
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	150
Filter Element Type	10 micron microglass	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.
Seal Material	Nitrile	Maximum Operating Temperature	107
Bypass Valve Pressure Rating	No Bypass	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Indicator Type	Sold separately	Housing Material	Low Carbon Steel
Compatible Element	928763	Mounting Type	Inline
Port Type	3/4" NPT ports	Flow Rate	49

Customers who bought this item also bought

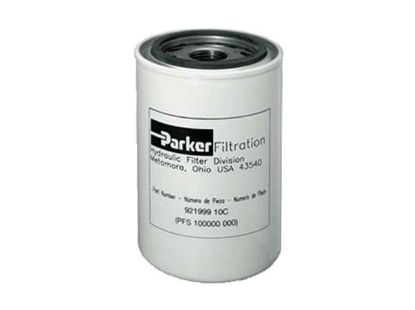

928763 - Replacement Elements - Low Pressure Filter 12AT/50AT/80AT/80UT Series
