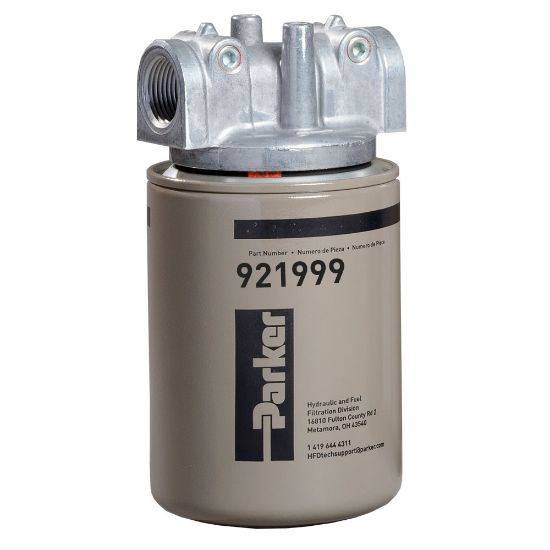

12AT110CBPCN12H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	32 in stock

SKU 12AT110CBPCN12H

$60.67/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Flow Rate (gpm)	9.5
Indicator Type	Sold separately	Bypass Valve (psi)	15
Port Connection Type	3/4" NPT ports	Filter Element	10 micron cellulose
Indicator Type	Sold separately	Compatible Element	921999
Flow Rate	9.5	Mounting Type	Inline
Port Type	3/4" NPT ports	Weight	1.6
Pressure Rating	150	Indicator Pressure Setting	0.8
Filter Element Type	10 micron cellulose	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.	Maximum Operating Temperature	225
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Seal Material	Nitrile
Bypass Valve Pressure Rating	15	Housing Material	Low Carbon Steel
