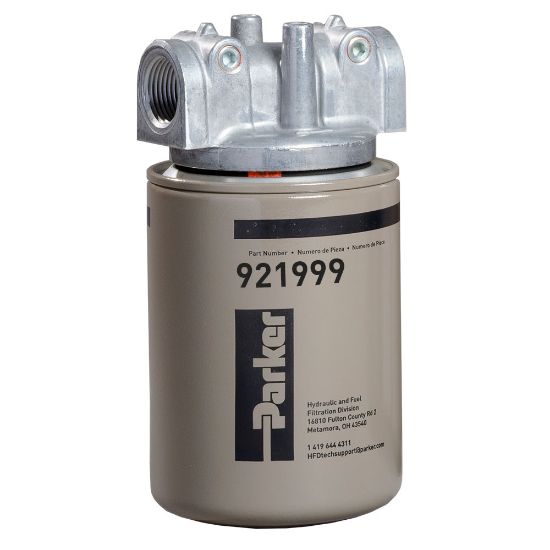

12AT110CBPXN12N - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 12AT110CBPXN12N

$46.67/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	None	Bypass Valve (psi)	No Bypass
Flow Rate (gpm)	13	Indicator Type	Sold separately
Port Connection Type	3/4" NPT ports	Filter Element	10 micron cellulose
Indicator Pressure Setting	No Bypass	Filter Element Type	Canister
Pressure Rating	10.3	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Maximum Operating Temperature	225
Seal Material	Nitrile	Options	None
Bypass Valve Pressure Rating	No Bypass	Housing Material	Low Carbon Steel
Indicator Type	Sold separately	Mounting Type	Inline
Compatible Element	921999	Port Type	3/4" NPT ports
Flow Rate	13	Weight	0.73
