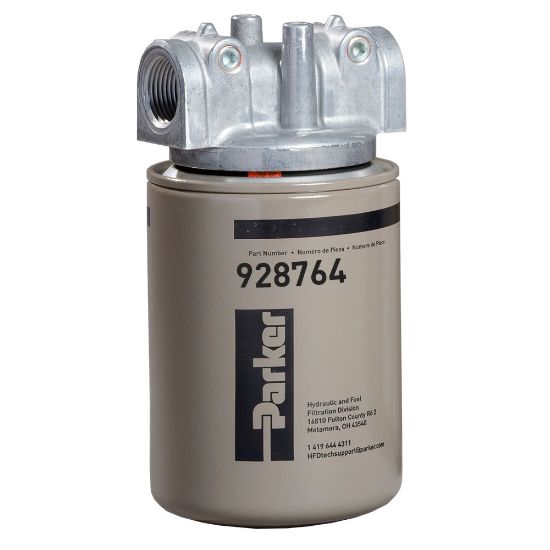

12AT120BBPGS12H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 12AT120BBPGS12H

$83.04/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Flow Rate (gpm)	13
Indicator Type	Sold separately	Bypass Valve (psi)	25
Port Connection Type	SAE-12 ports	Filter Element	20 micron microglass
Port Type	SAE-12 ports	Weight	0.73
Indicator Pressure Setting	20	Filter Element Type	Canister
Pressure Rating	10.3	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature	225	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.
Seal Material	Nitrile	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Bypass Valve Pressure Rating	25	Housing Material	Low Carbon Steel
Indicator Type	Sold separately	Compatible Element	928764
Mounting Type	Inline	Flow Rate	49
