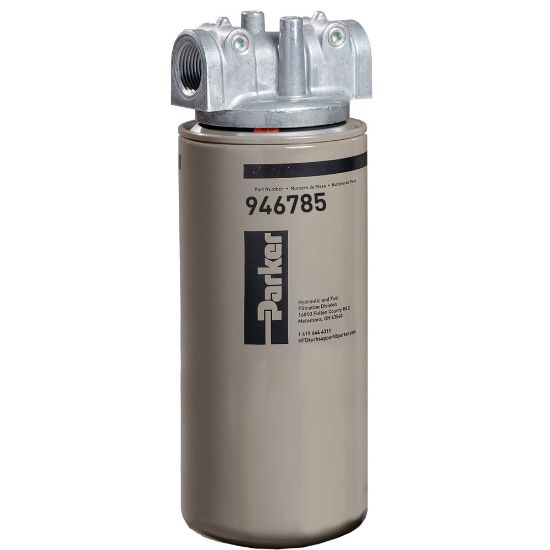

12AT210CBPGS12H - Low Pressure Spin-On Filters 12AT/50AT Series

Name: 12AT210CBPGS12H - Low Pressure Spin-On Filters 12AT/50AT Series
SKU: 12AT210CBPGS12H
Price: 60.94 USD
Availability: LimitedAvailability

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:

2 Limited Stock

Wichita, KS

Partner Available:

22 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 12AT210CBPGS12H

$60.94/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Indicator Type	Sold separately
Bypass Valve (psi)	25	Port Connection Type	SAE-12 ports
Filter Element	10 micron cellulose	Flow Rate (gpm)	25
Pressure Rating	10.3	Indicator Pressure Setting	20
Filter Element Type	10 micron cellulose	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Maximum Operating Temperature	225
Bypass Valve Pressure Rating	1.7 bar	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Housing Material	Low Carbon Steel
Compatible Element	946785	Indicator Type	Sold separately
Mounting Type	Inline	Port Type	SAE-12 ports
Flow Rate	25	Weight	2.7
