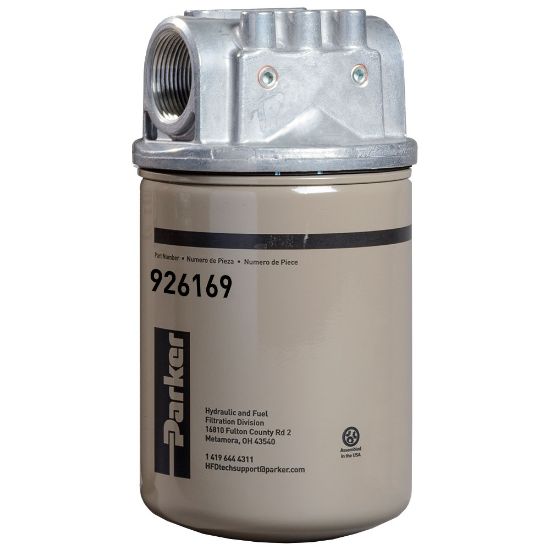

50AT110CBPCN20H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	5 in stock

SKU 50AT110CBPCN20H

$117.21/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Indicator Type	Sold separately
Bypass Valve (psi)	15	Filter Element	10 micron cellulose
Flow Rate (gpm)	27	Port Connection Type	1-1/4" NPT ports
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	10.3
Housing Material	Low Carbon Steel	Flow Rate	102
Port Type	1-1/4" NPT ports	Maximum Operating Temperature	225
Seal Material	Nitrile	Weight	1.77
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Mounting Type	Inline
Filter Element Type	Canister	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.
Compatible Element	926169	Indicator Type	Sold separately
Indicator Pressure Setting	0.8	Bypass Valve Pressure Rating	15
