*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

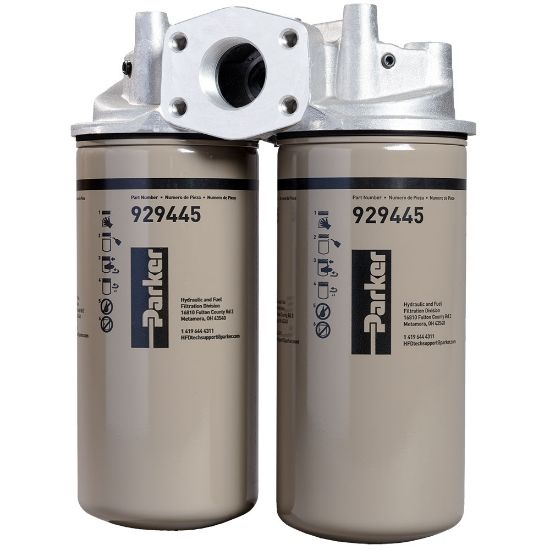

80AT210BBPGY32H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 80AT210BBPGY32H

$334.93/each

Products specifications

Attribute name	Attribute value
UOM	EA	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Filter Element	10 micron microglass	Bypass Valve (psi)	25 psid bypass
Port Connection Type	2" SAE Code 61 Flange / 1-1/2" NPT ports	Seal Material	Nitrile
Flow Rate (gpm)	80	Indicator Type	Sold separately
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Seal Material	Nitrile
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.	Maximum Operating Temperature	225
Pressure Rating	10.3	Filter Element Type	Canister
Housing Material	Low Carbon Steel	Bypass Valve Pressure Rating	1.7 bar
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Mounting Type	Inline
Flow Rate	80	Indicator Type	Sold separately
Compatible Element	929445	Indicator Pressure Setting	1.4
Weight	5.89	Port Type	2" SAE Code 61 Flange / 1-1/2" NPT ports
