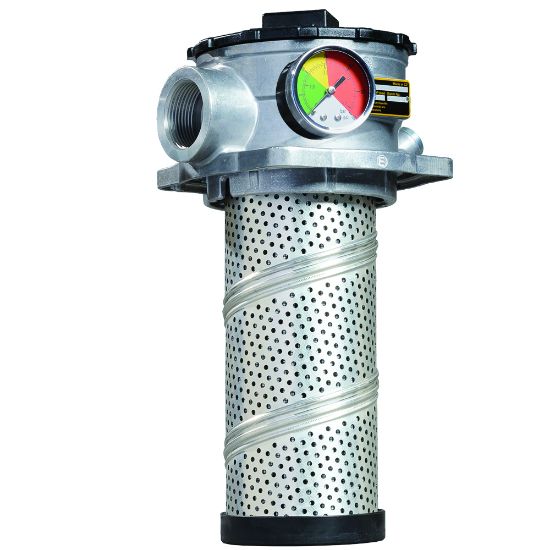

GLF2110QBGIS241 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU GLF2110QBGIS241

$216.22/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element	10Q Microglass	Options	None
Port Connection Type	SAE-24	Bypass Valve (psi)	35
Indicator Type	Tri-color Pressure Gauge	Flow Rate (gpm)	95
Indicator Type	Tri-color Pressure Gauge	Compatible Element	946433Q
Mounting Type	Tank Mounted	Flow Rate	360 L/min
Options	None	Bypass Valve Pressure Rating	2.4 bar
Housing Material	Cast Aluminum Alloy	Filter Element Type	Cartridge
Pressure Rating	150 psi	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Seal Material	Nitrile	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Maximum Operating Temperature	107 °C	Port Type	SAE-24
Weight	3.18 kg	Indicator Pressure Setting	28 psi
