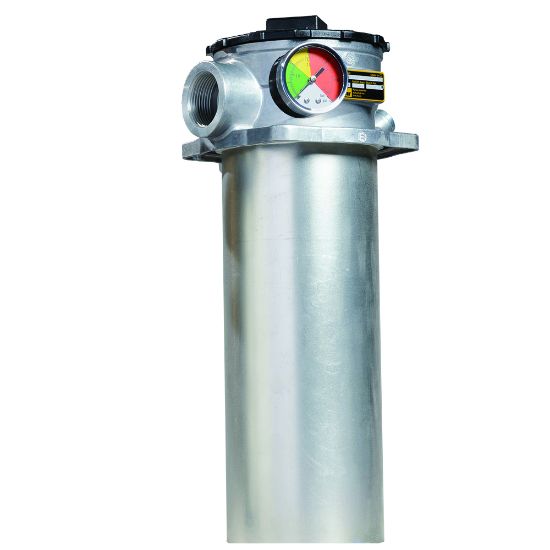

GLF2210QBGIS24D - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 15 days
Partner Available:	Backordered

SKU GLF2210QBGIS24D

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element	10Q Microglass	Port Connection Type	SAE-24
Flow Rate (gpm)	100	Bypass Valve (psi)	35
Options	Drop Tube	Indicator Type	Tri-color Pressure Gauge
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	10.3 bar
Housing Material	Cast Aluminum Alloy	Flow Rate	379 L/min
Port Type	SAE-24	Maximum Operating Temperature	225 °F
Seal Material	Nitrile	Weight	5 lb
Options	Drop Tube	Mounting Type	Tank Mounted
Filter Element Type	10Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Compatible Element	946437Q	Indicator Type	Tri-color Pressure Gauge
Indicator Pressure Setting	28 psi	Bypass Valve Pressure Rating	2.4 bar
