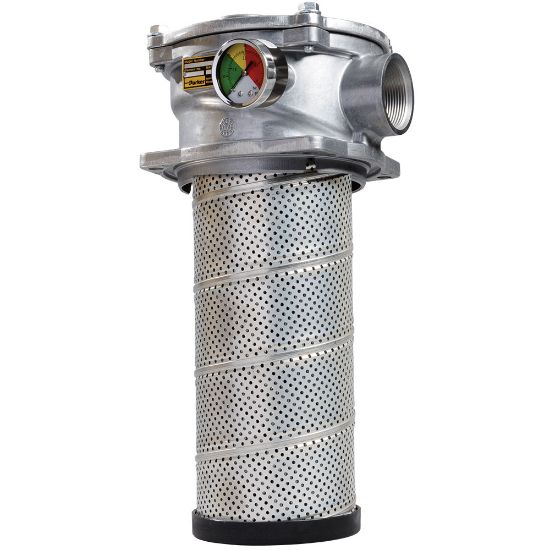

GLF3105QBGIS241 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU GLF3105QBGIS241

$449.74/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element	05Q Microglass	Options	None
Port Connection Type	SAE-24	Bypass Valve (psi)	35
Indicator Type	Tri-color Pressure Gauge	Flow Rate (gpm)	130
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	10 bar
Housing Material	Cast Aluminum Alloy	Flow Rate	130 Gal/min
Port Type	SAE-24	Maximum Operating Temperature	107 °C
Seal Material	Nitrile	Weight	3.18 kg
Options	None	Mounting Type	Tank Mounted
Filter Element Type	05Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Compatible Element	945895Q	Indicator Type	Tri-color Pressure Gauge
Indicator Pressure Setting	28 psi	Bypass Valve Pressure Rating	35 psi

Product resources

Literature and Reference Materials
