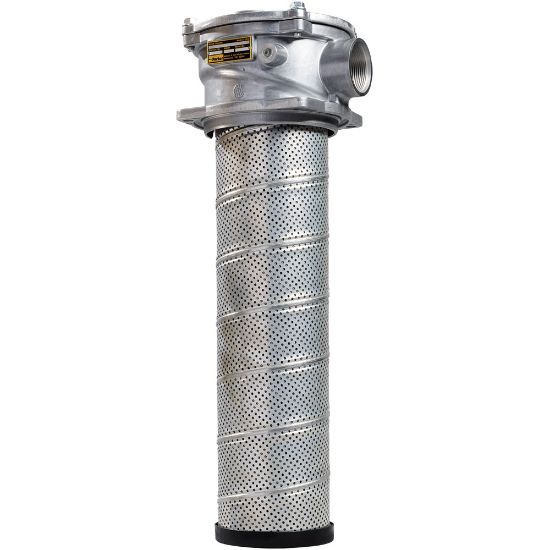

GLF3205QBSIS241 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU GLF3205QBSIS241

$615.92/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element	05Q Microglass	Options	None
Flow Rate (gpm)	210	Port Connection Type	SAE-24
Bypass Valve (psi)	35	Indicator Type	Pressure Switch
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	150
Housing Material	Cast Aluminum Alloy	Flow Rate	794
Port Type	SAE-24	Maximum Operating Temperature	225
Seal Material	Nitrile	Weight	8
Options	None	Mounting Type	Tank Mounted
Filter Element Type	05Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Compatible Element	945899Q	Indicator Type	Pressure Switch
Indicator Pressure Setting	28	Bypass Valve Pressure Rating	35
