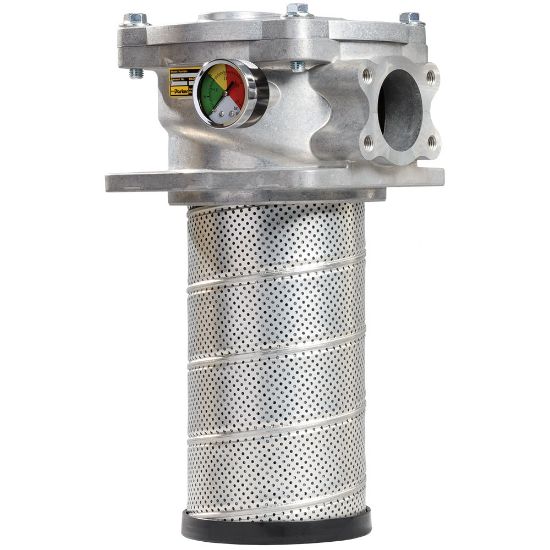

GLF4105QBGI2Y401 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU GLF4105QBGI2Y401

$751.73/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element	05Q Microglass	Options	None
Bypass Valve (psi)	35	Indicator Type	Tri-color Pressure Gauge
Flow Rate (gpm)	195	Port Connection Type	Dual SAE Code 61 Flange Face Ports (1x2 1/2” port, 1x2” port)
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	10 bar
Housing Material	Cast Aluminum Alloy	Flow Rate	195 Gal/min
Port Type	Dual SAE Code 61 Flange Face<br/>Ports (1x2 1/2” port, 1x2” port)	Maximum Operating Temperature	107 °C
Seal Material	Nitrile	Weight	4.08 kg
Options	None	Mounting Type	Tank Mounted
Filter Element Type	05Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Compatible Element	946432Q	Indicator Type	Tri-color Pressure Gauge
Indicator Pressure Setting	1.9 bar	Bypass Valve Pressure Rating	2.4 bar
