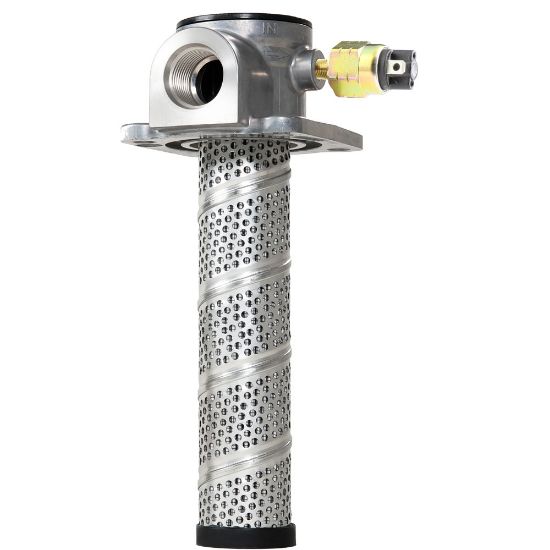

PT2205QBSGS121 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PT2205QBSGS121

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	None	Filter Element Type	05Q Microglass
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Port Connection Type	SAE-12
Flow Rate	25 gpm (94.6 lpm)	Indicator Type	Pressure Switch
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	15 psi
Housing Material	Aluminum	Flow Rate	25.0 Gal/min
Maximum Operating Temperature	225.0 °F	Seal Material	Nitrile
Weight	1.07 lb	Options	Tank Mounted
Mounting Style	Tank Mounted	Filter Element Type	05Q Microglass
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Compatible Element	936755
Indicator Type	Pressure switch	Indicator Pressure Setting	No Indicator
Bypass Valve Pressure Rating	1.7 bar
