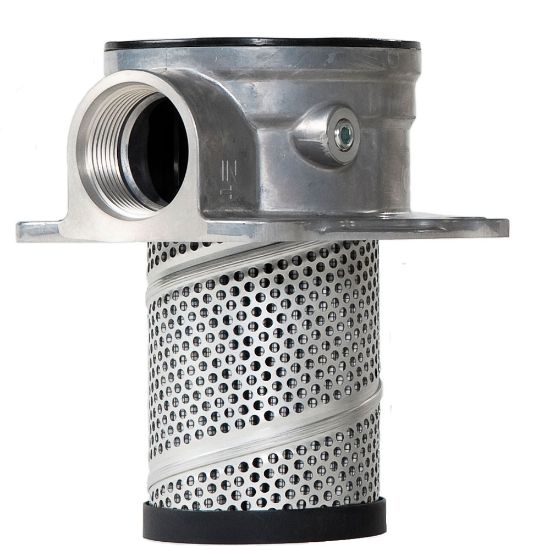

PT4110QBPGS16W - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU PT4110QBPGS16W

$286.34/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element Type	10Q Microglass	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Port Connection Type	SAE-16	Indicator Type	Plugged Ports
Options	Steel weld ring	Flow Rate	30 gpm (113.6 lpm)
Housing Material	Aluminum	Indicator Type	Plugged ports
Compatible Element	936744	Maximum Operating Temperature	107.0 °C
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Bypass Valve Pressure Rating	1.7 bar	Options	Tank Mounted
Seal Material	Nitrile	Weight	1.79 lb
Pressure Rating	15 psi	Indicator Pressure Setting	Steel Weld Ring
Filter Element Type	10Q Microglass	Mounting Style	Tank Mounted
Flow Rate	30.0 Gal/min
