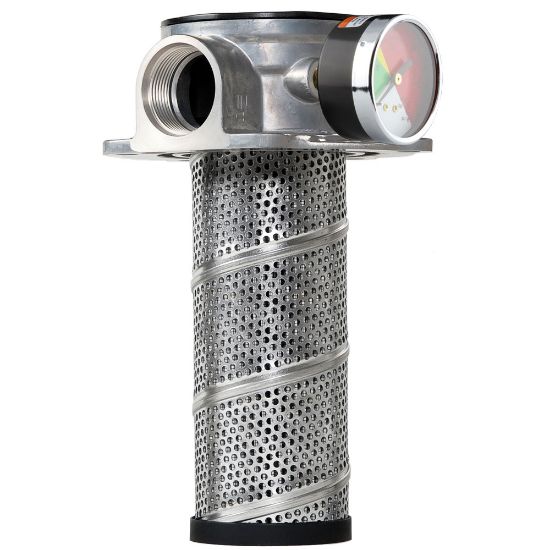

PT4205QBGGS161 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU PT4205QBGGS161

$217.39/each

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element Type	05Q Microglass
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Flow Rate	50 gpm (189.3 lpm)
Options	None	Indicator Type	Pressure gauge, 25 psi
Port Connection Type	SAE-16	Seal Material	Nitrile
Pressure Rating	15 psi	Indicator Pressure Setting	No Indicator
Filter Element Type	05Q Microglass	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature	225.0 °F	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Weight	2.17 lb	Indicator Type	Pressure gauge, 25 psi
Compatible Element	936747	Flow Rate	50.0 Gal/min
Mounting Style	Tank Mounted	Seal Material	Nitrile
Bypass Valve Pressure Rating	25.0 psid	Options	Tank Mounted
Housing Material	Aluminum
