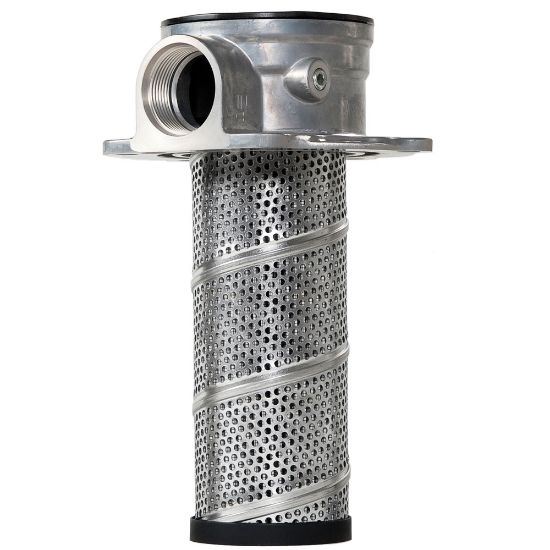

PT4205QBPGS16W - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PT4205QBPGS16W

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	Steel weld ring	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Indicator Type	Plugged Ports	Port Connection Type	SAE-16
Flow Rate	50 gpm (189.3 lpm)	Filter Element Type	05Q Microglass
Housing Material	Aluminum	Compatible Element	936747
Indicator Type	Plugged ports	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Maximum Operating Temperature	225.0 °F	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Bypass Valve Pressure Rating	1.7 bar	Seal Material	Nitrile
Options	Tank Mounted	Weight	2.17 lb
Filter Element Type	05Q Microglass	Pressure Rating	10.3 bar
Indicator Pressure Setting	Steel Weld Ring	Flow Rate	189.3 L/min
Mounting Style	Tank Mounted
