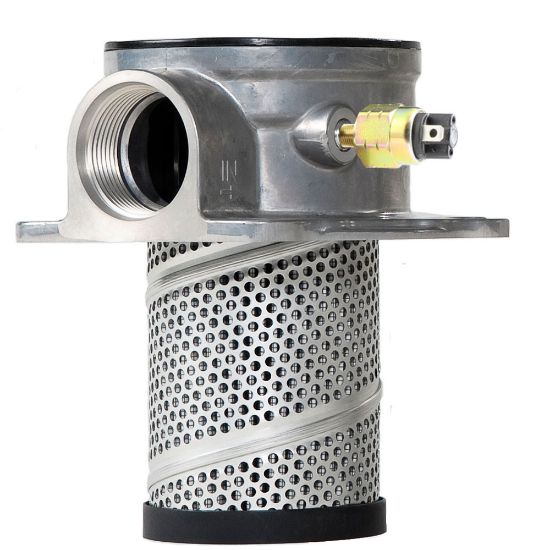

PT4205QBSGS201 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU PT4205QBSGS201

$272.85/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	None	Indicator Type	Pressure Switch
Port Connection Type	SAE-20	Flow Rate	50 gpm (189.3 lpm)
Filter Element Type	05Q Microglass	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Flow Rate	189.3 L/min	Mounting Style	Tank Mounted
Housing Material	Aluminum	Compatible Element	936747
Indicator Type	Pressure switch	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Maximum Operating Temperature	107.0 °C	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Bypass Valve Pressure Rating	25.0 psid	Seal Material	Nitrile
Options	Tank Mounted	Weight	0.98 kg
Indicator Pressure Setting	No Indicator	Filter Element Type	05Q Microglass
Pressure Rating	15 psi
