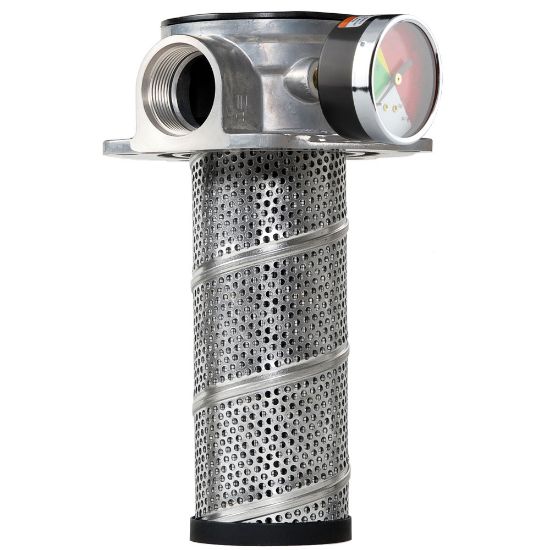

PT4220QBGGS201 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PT4220QBGGS201

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	50 gpm (189.3 lpm)
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Options	None
Filter Element Type	20Q Microglass	Indicator Type	Pressure gauge, 25 psi
Port Connection Type	SAE-20	Seal Material	Nitrile
Indicator Pressure Setting	No Indicator	Filter Element Type	20Q Microglass
Pressure Rating	10.3 bar	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Maximum Operating Temperature	107.0 °C
Weight	0.98 kg	Indicator Type	Pressure gauge, 25 psi
Compatible Element	936749	Mounting Style	Tank Mounted
Flow Rate	189.3 L/min	Seal Material	Nitrile
Options	Tank Mounted	Bypass Valve Pressure Rating	1.7 bar
Housing Material	Aluminum
