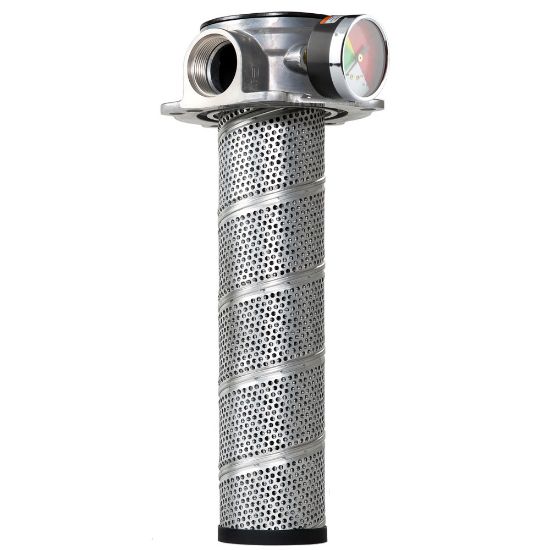

PT4302QBGGS16W - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PT4302QBGGS16W

Products specifications

Attribute name	Attribute value
UOM	EA	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Flow Rate	55 gpm (208.2 lpm)	Options	Steel weld ring
Indicator Type	Pressure gauge, 25 psi	Filter Element Type	02Q Microglass
Port Connection Type	SAE-16	Seal Material	Nitrile
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Pressure Rating	10.3 bar	Filter Element Type	02Q Microglass
Maximum Operating Temperature	225.0 °F	Seal Material	Nitrile
Weight	1.21 kg	Indicator Pressure Setting	Steel Weld Ring
Indicator Type	Pressure gauge, 25 psi	Compatible Element	936876
Flow Rate	208.2 L/min	Mounting Style	Tank Mounted
Bypass Valve Pressure Rating	25.0 psid	Options	Tank Mounted
Housing Material	Aluminum
