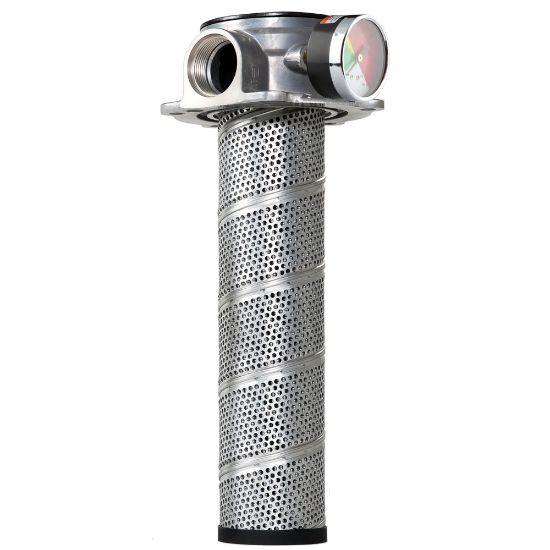

PT4305QBGGS16W - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PT4305QBGGS16W

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element Type	05Q Microglass
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Seal Material	Nitrile
Flow Rate	55 gpm (208.2 lpm)	Options	Steel weld ring
Indicator Type	Pressure gauge, 25 psi	Port Connection Type	SAE-16
Indicator Pressure Setting	Steel Weld Ring	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Filter Element Type	05Q Microglass
Pressure Rating	15 psi	Flow Rate	55.0 Gal/min
Weight	1.21 kg	Housing Material	Aluminum
Indicator Type	Pressure gauge, 25 psi	Mounting Style	Tank Mounted
Compatible Element	936877	Maximum Operating Temperature	107.0 °C
Seal Material	Nitrile	Options	Tank Mounted
Bypass Valve Pressure Rating	1.7 bar

Product resources

Literature and Reference Materials
